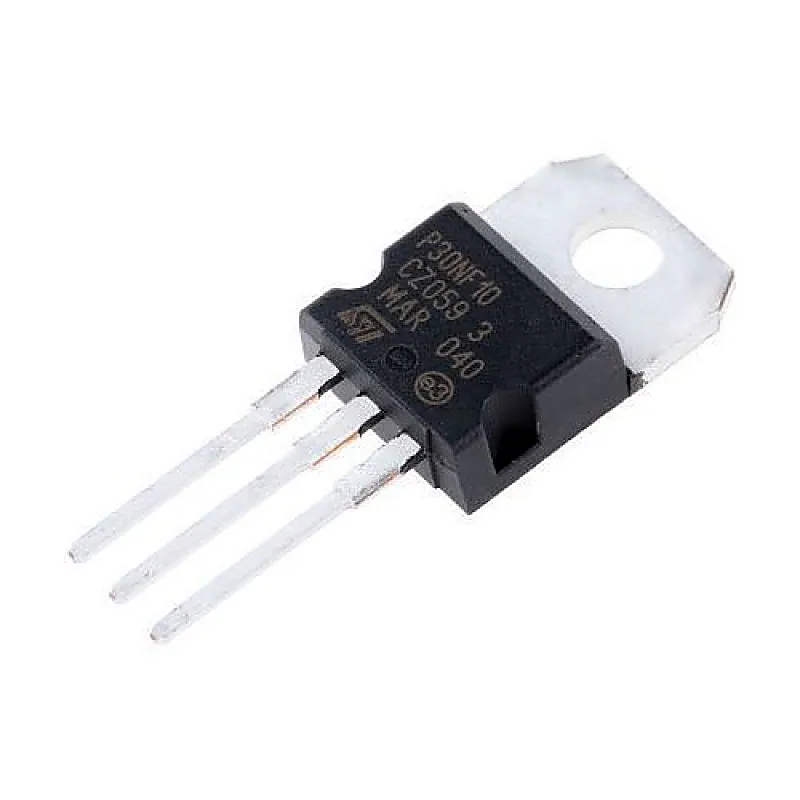

P30NF10 (STP30NF10) MOSFET - 100V 35A N-Channel Power MOSFET TO-220 Package
P30NF10 (STP30NF10) MOSFET - 100V 35A N-Channel Power MOSFET TO-220 Package
P30NF10 is apower MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable man
+ 18% GST (added at checkout)
In stock — 1042 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
P30NF10 is apower MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. Features:- • Exceptional dv/dt capability • 100% avalanche tested • Application oriented characterization • Switching application Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 100V Continuous Drain Current (Id) 35A Drain-Source Resistance (Rds On) 0.045Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 55 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 115W Related Documents:- P30NF10 MOSFET Datasheet
