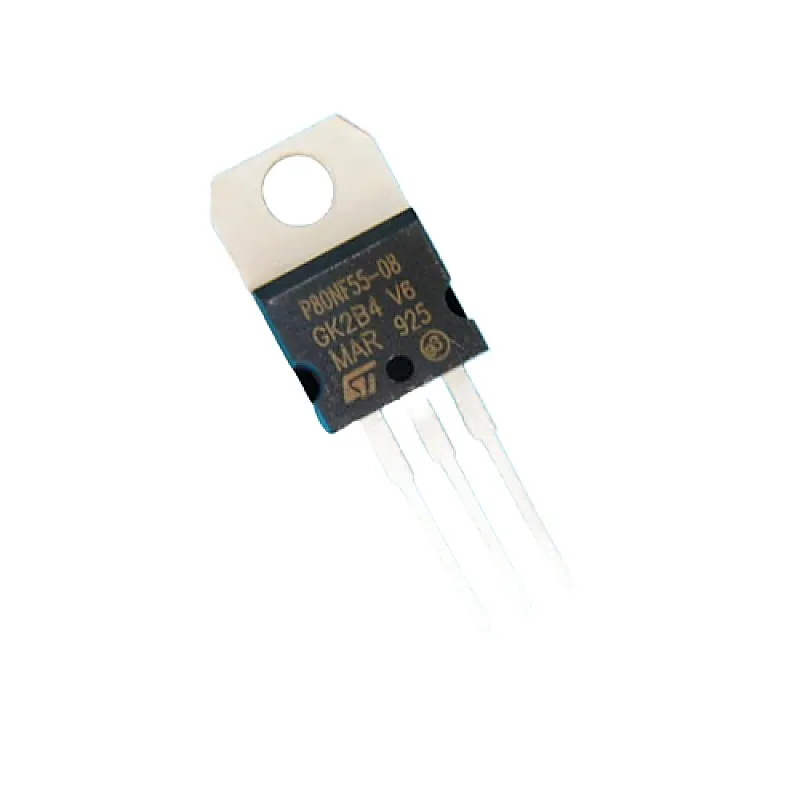

P80NF55 (STP80NF55) MOSFET - 55V 80A N-Channel Power MOSFET TO-220 Package
P80NF55 (STP80NF55) MOSFET - 55V 80A N-Channel Power MOSFET TO-220 Package
P80NF55 power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and
+ 18% GST (added at checkout)
In stock — 770 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
P80NF55 power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and computer applications, and applications with low gate charge driving requirements. Features:- • 100% avalanche tested • Designed for automotive applications and AEC-Q101 qualified • Low input capacitance and gate charge • Low gate input resistance Detailed Specifications:- Number of Channels 1 Channel Transistor Polarity N-Channel Drain-Source Breakdown Voltage (Vds) 55V Continuous Drain Current (Id) 80A Drain-Source Resistance (Rds On) 8Ohms Gate-Source Voltage (Vgs) 20V Gate Charge (Qg) 155 nC Operating Temperature Range -55 - 175°C Power Dissipation (Pd) 300W Related Documents:- P80NF55 MOSFET Datasheet
