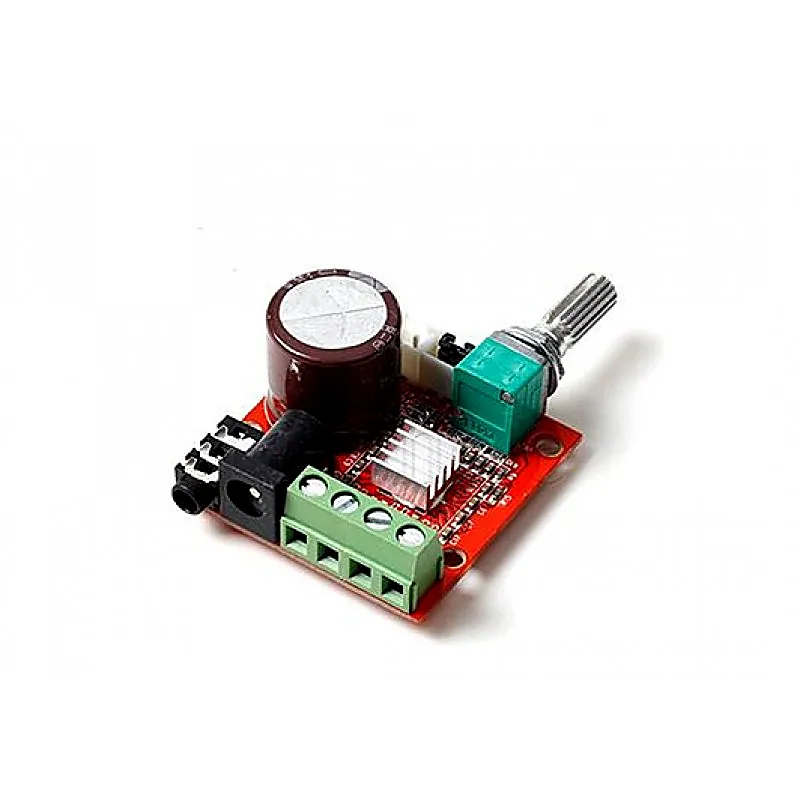

PAM8610 Stereo Audio Amplifier Board with Switch Potentiometer

The power amplifier circuit board designed using the official standard. the chip uses a selection of US imports original Longding micro Class D amplifier chip. Good product chip is necessary and the majority of music lovers to share. this is our consistent philosophy! The amplifier with ultra-high efficiency. large power. in the case of 12V power supply can output 10W + 10W of power. the chip without fins. but also with overheating. over-current protection function. the function can be said to be very powerful. Specifications :- Work : D Class Quiescent Current : 20mA Efficiency : 97% Rated output power : 10w+10w(8Ω) Frequency response : 20Hz to 50KHz Operating voltage : DC7.5-15V Recommended supply voltage : 12V,the center PIN of 12VDC is +. PCB board size : 40x40x20mm Package Includes :- 1 X PAM8610 Stereo Audio Amplifier Board with Switch Potentiometer
