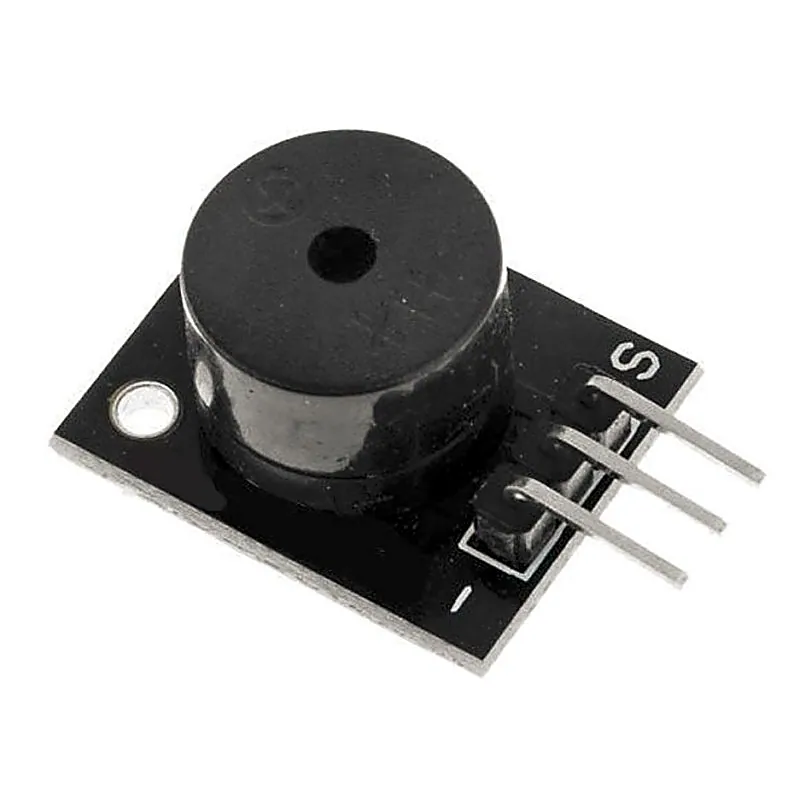

Passive Buzzer PCB Mounted Module

Passive Buzzer Module is a built-in construction of digital transducers, DC energy provides, extensively utilized in computer systems, printers, copiers, alarms, digital toys, car digital apparatus, phones, timers and different digital electronics projects for Alert sound. This PCB Mounted Passive Buzzer Module can produce a range of sound tones depending on the input frequency, i.e it can generate tones between 1.5 to 2.5 kHz by switching it on and off at different frequencies either using delays or PWM. This module is ideally suited to adding noise to your project and is compatible with a pin pitch of 2.54mm while functioning with microcontrollers such as the Arduino. This module lets you respond to programmatic changes with a lovely annoying buzzer that can be altered over a range of frequencies to ensure maximum irritation. To operate the I/O pin must receive a square wave to trigger the buzzer. This can be produced within all popular microcontrollers. Connections:- Arduino: Buzzer GND: (minus sign) Center Pin: No connection Any digital pin: S Specifications:- Operating Voltage : 1.5 ~ 15V DC Working Current: Less than 25mA Material: Plastic Tone Generation Range : 1.5 ~ 2.5kHz Dimensions (LxWxH): 26 x 15 x 11 (in mm) Weight: 3gm Package Includes:- 1 x Passive Buzzer PCB Mounted Module
