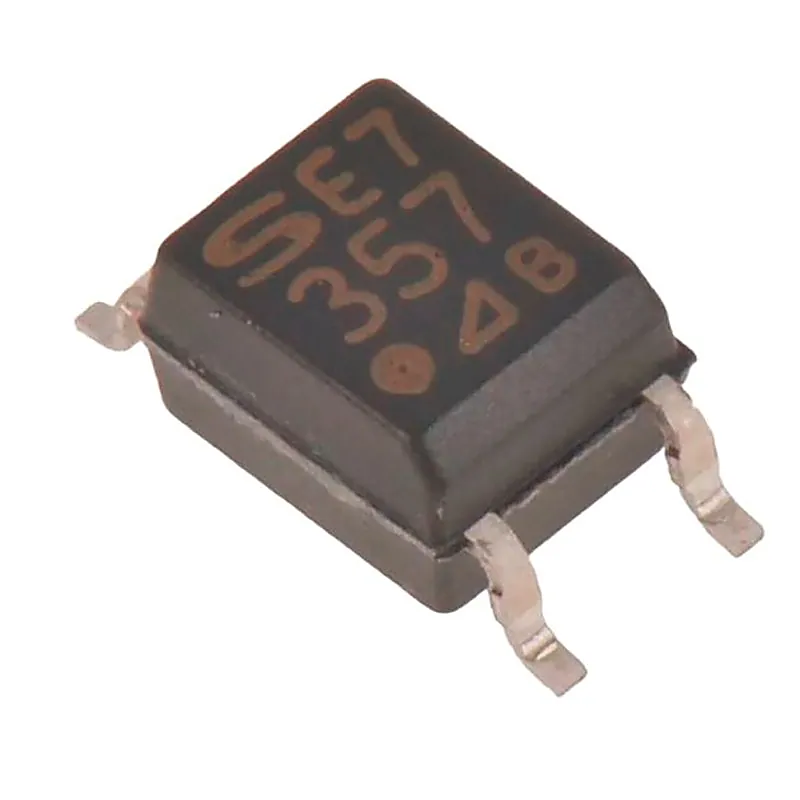

PC357 - (SMD Package) - Sharp 1-Channel Transistor Output Optocoupler

The PC357 contains an IRED optically coupled to a photo transistor. It is packaged in a 4-pin Mini-flat package. Input-output isolation voltage(rms) is 3.75kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA. Features:- • 4-pin Mini-flat package • Double transfer mold package (Ideal for Flow Soldering) • High collector-emitter voltage (VCEO : 80V) • Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V • Several CTR ranks available • High isolation voltage between input and output (Viso(rms) : 3.75kV) 7. RoHS directive compliant Applications:- • Hybrid substrates that require high density mounting • Programmable controllers Specification:- Symbol Parameter Rating Units IF Forward current 50 mA IFM Input Peak forward current 1 A VR Reverse voltage 6 V P Power dissipation 70 mW VCEO Collector-emitter voltage 80 V VECO Emitter-collector voltage 6 V IC Collector current 50 mA PC Collector power dissipation 150 mW Ptot Total power dissipation 170 mW Topr Operating temperature −30 to +100 °C Tstg Storage temperature −40 to +125 °C Viso (rms) Isolation voltage 3.75 kV Tsol Soldering temperature 260 °C Related Document:- PC357 SMD Data Sheet
