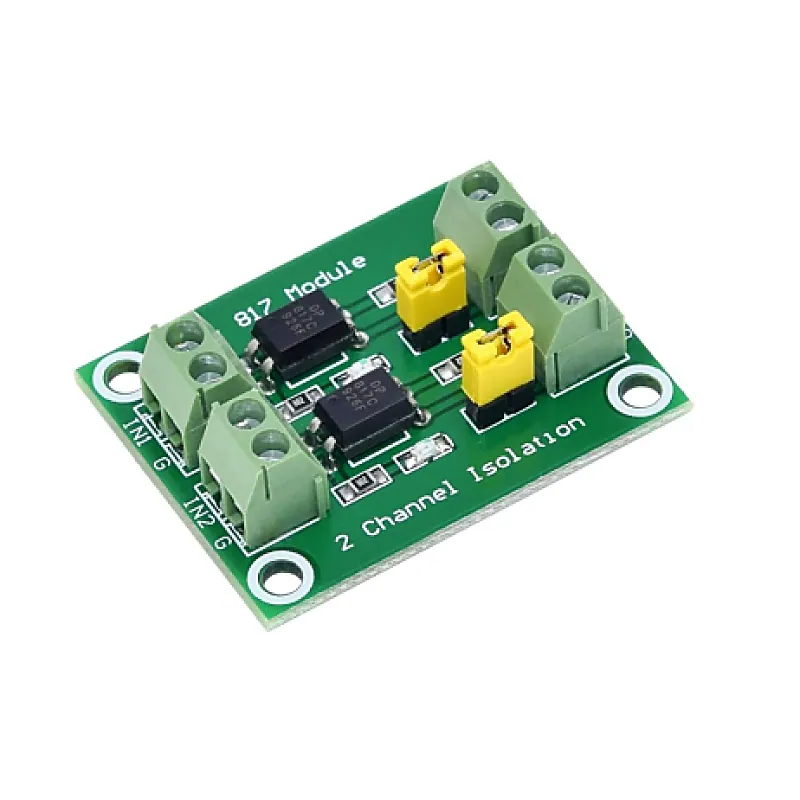

PC817 2 Channel Optocoupler Isolation Module

This is a PC817 2 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface. Applications: I/O isolation for MCUs (Micro Controller Units) Noise Suppression in Switching Circuits Signal Transmission Between Circuits of Different Potentials and Impedances Features: Driving Port Signal Voltage: 3.6-24V Output Port Voltage Port: 3.6-30V Output Can Be Switched From Pull-Up or Pull-Down With Jumpers. Package Includes: 1 x PC817 2 Channel Optocoupler Isolation Module Specifications :- No. of Channels 2 Input Voltage (V) 3.6-24DC Output Voltage (VDC) 3.6-30 Length (mm) 38 Width (mm) 29 Height (mm) 12 Weight (gm) 5
