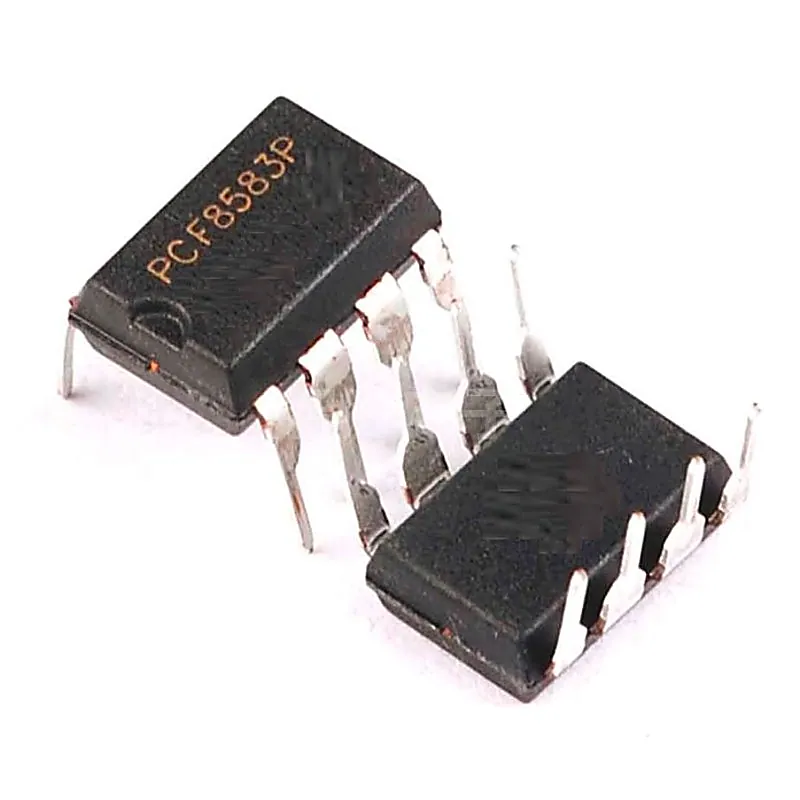

PCF8583P Real Time Clock (RTC) and Calendar IC DIP-8 Package

The PCF8583 is a clock and calendar chip, based on a 2048 bit static CMOS1 RAM organized as 256 words by 8 bits. Addresses and data are transferred serially via the two-line bidirectional I2C-bus. The built-in word address register is incremented automatically after each written or read data byte. Address pin A0 is used for programming the hardware address, allowing the connection of two devices to the bus without additional hardware. The built-in 32.768 kHz oscillator circuit and the first 8 bytes of the RAM are used for the clock, calendar, and counter functions. The next 8 bytes can be programmed as alarm registers or used as free RAM space. The remaining 240 bytes are free RAM locations. Features and Specifications:- I2C-bus interface operating supply voltage: 2.5 V to 6 V Clock operating supply voltage (0 to +70°C): 1.0 V to 6.0 V 240×8-bit low-voltage RAM Data retention voltage: 1.0 V to 6 V Operating current (at fSCL= 0 Hz): max. 50µA Clock function with four year calendar Universal timer with alarm and overflow indication 24 or 12 hour format 32.768 kHz or 50 Hz time base Serial input/output bus (I2C) Automatic word address incrementing Programmable alarm, timer and interrupt function Slave address: – READ: A1 or A3 – WRITE: A0 or A2. Package Includes:- 1 x PCF8583P Real Time Clock (RTC) and Calendar IC DIP-8 Package
