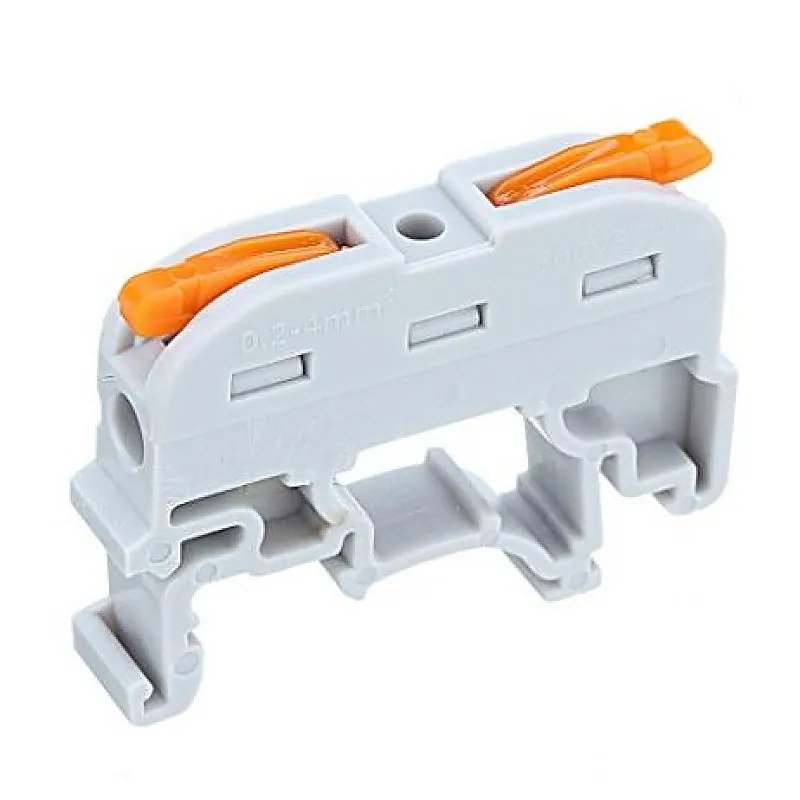

PCT-211 Guide Rail Type Quick Connection Terminal

The PCT series compact splicing connectors make the connecting easily save time and money in distribution boxes or junction boxes. With the compact body, we can make connecting possible to be done in the narrow space and enable the high wiring density. This is a PCT-211 0.08-4mm2 Single Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection . PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm 2 area or soft wire with 0.08mm to 4.0mm 2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A. Features: High-grade Insulative Nylon Material Strong Spring Locking Lever Nickel Plated Metal Point Inside Good Temperature Resistance Compact Splicing Connector 4-Conductor Terminal Block With Operating Levers Max. Continuous Service Temperature 85C Package Includes: 1 x PCT-211 Guide Rail Type Quick Connection Terminal Specifications :- Model PCT-211 Rated Voltage (V) 400 Rated Current(A) 32 Color Grey+Orange Operating Temperature Range (C) -20 to 85
