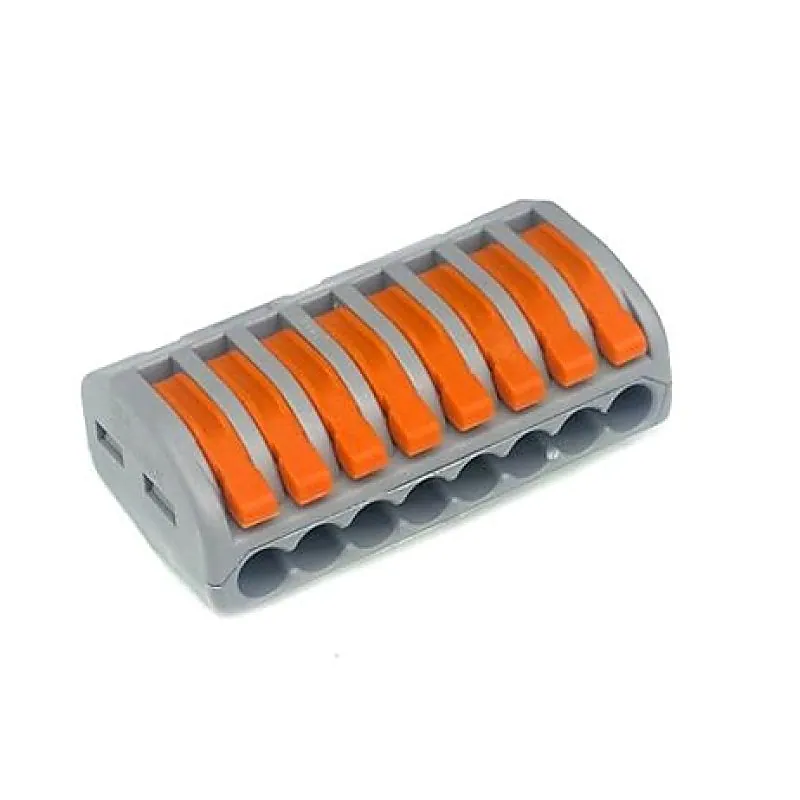

PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

This is a PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection . PCT Spring Lever Connector [212, 213, 215, 215, 218] package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm 2 area or soft wire with 0.08mm to 4.0mm 2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power. Features: High-grade Insulative Nylon Material Strong Spring Locking Lever Nickel Plated Metal Point Inside Good Temperature Resistance Compact Splicing Connector 4-Conductor Terminal Block With Operating Levers Max. Continuous Service Temperature 85C Package Includes: 1 x PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block Specifications :- Model PCT-218 Rated Voltage (V) 250V/4KV Rated Current(A) 32 Body Material Modified Nylon (PA66) Contact Material Stainless Steel No. of Contact Points 8 Rated Power (W) 7 KW Allowed Wire Size (AWG) 28 ~ 12 Color Grey+Orange Operating Temperature Range (C) -20 to 80 Length (mm) 41 Width (mm) 21 Weight (gm) 10 Shipment Weight 0.015 kg Shipment Dimensions 4 4 1 cm
