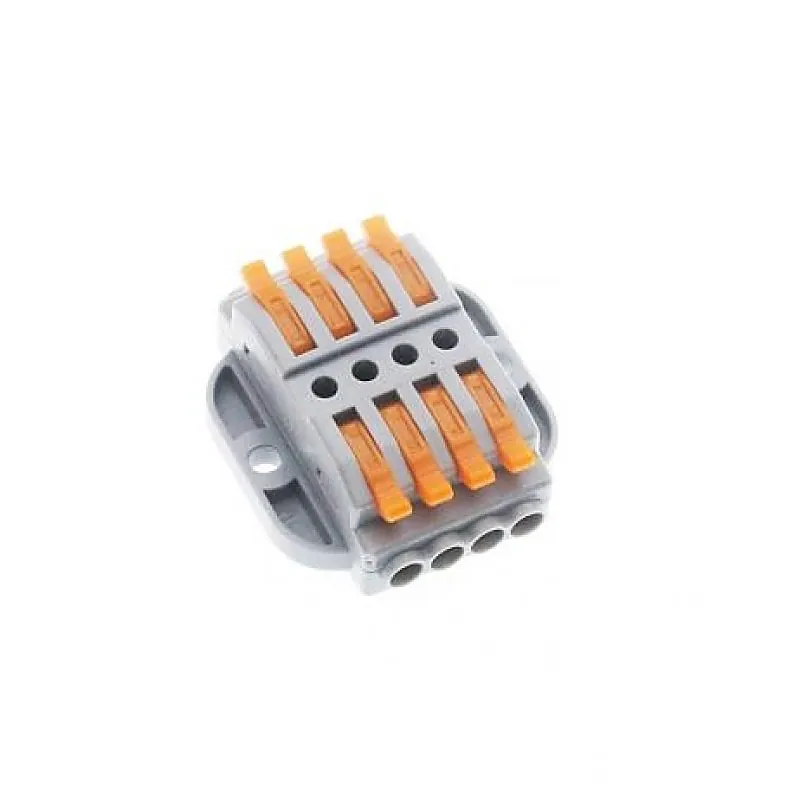

PCT-223-4 Stationary Type Quick Connection Terminal
PCT-223-4 Stationary Type Quick Connection Terminal
This is a PCT-223-4 0.08~4.0 mm2 4 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm 2 area or soft wire
+ 18% GST (added at checkout)
In stock — 238 units ready
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
- Rated voltage: 600V
- Rated current: 32A
- Number of poles: 4
- Wire section :0.08~4.0mm2
- Number of clamps: 4
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a PCT-223-4 0.08~4.0 mm2 4 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm 2 area or soft wire with 0.08~4.0 mm 2 area. This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A . This connector is compatible with 28~12 AWG. Features: Fast and easy to use The right terminal block and connector for every application Minimal space requirements enable high wiring density Clearly organized wiring in control cabinets and junction boxes Maintenance-free installation Permanent, secure connections Specifications: Rated voltage: 600V Rated current: 32A Number of poles: 4 Wire section :0.08~4.0mm2 Number of clamps: 4 Package Includes: 1 x PCT-223-4 Stationary Type Quick Connection Terminal
