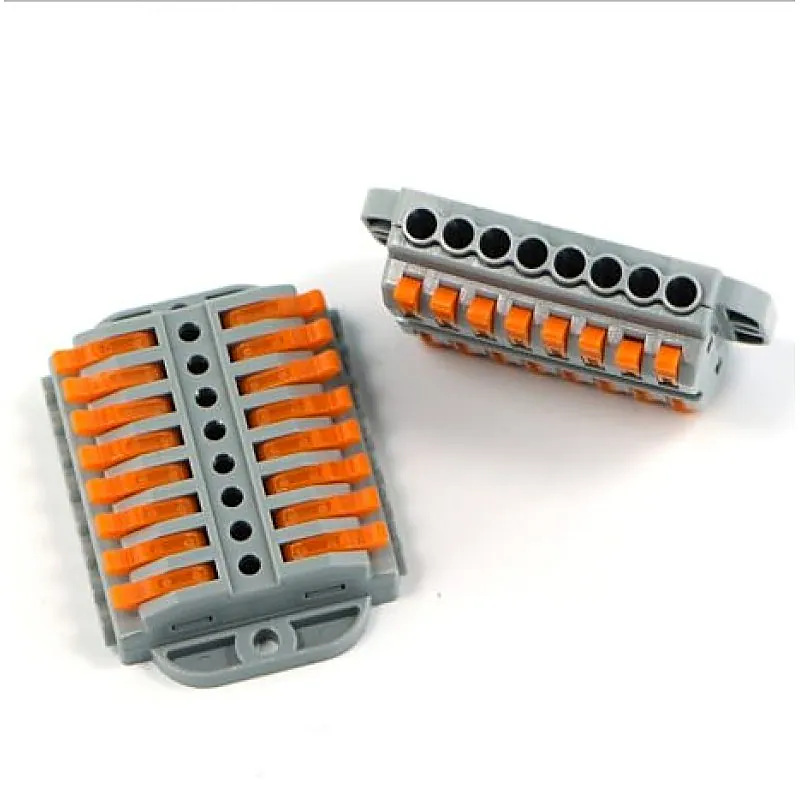

PCT-223-8 Stationary Type Quick Connection Terminal

This is a PCT-223-8 0.08-2.5mm2 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection . PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm 2 area or soft wire with 0.08mm to 4.0mm 2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A. Features: High-grade Insulative Nylon Material Strong Spring Locking Lever Nickel Plated Metal Point Inside Good Temperature Resistance Compact Splicing Connector 4-Conductor Terminal Block With Operating Levers Max. Continuous Service Temperature 85C Package Includes: 1 x PCT-223-8 Stationary Type Quick Connection Terminal Specifications :- Model PCT-223-8 Rated Voltage (V) 600 Rated Current(A) 32 Body Material Modified Nylon (PA66) Contact Material Stainless Steel No. of Contact Points 8 Allowed Wire Size (AWG) 28 ~ 12 Color Grey+Orange Operating Temperature Range (C) -20 to 80
