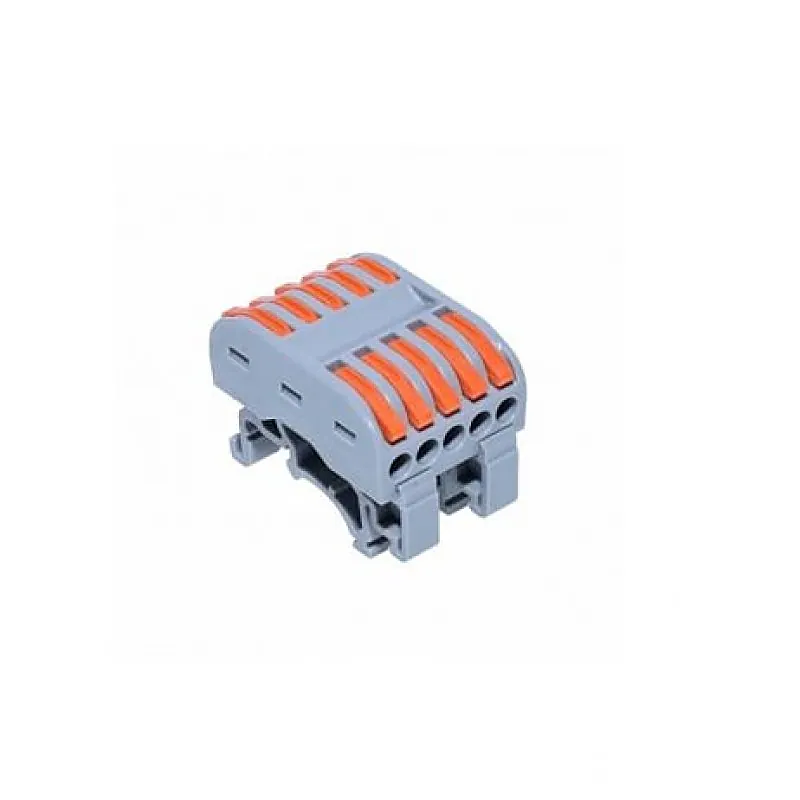

PCT-225D Guide Rail Type Quick Connection Terminal
PCT-225D Guide Rail Type Quick Connection Terminal
This is a PCT-225D 0.5- 4 mm 2 5 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection and it has. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.5 mm to 4 mm 2 area o
+ 18% GST (added at checkout)
In stock — 30 units ready
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
- Rated voltage: 400V
- Rated current: 32A
- Number of poles: 5
- Recording: DIN rail
- Wire section : 0.5 -4mm2
- Number of clamps: 10
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a PCT-225D 0.5- 4 mm 2 5 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection and it has. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.5 mm to 4 mm 2 area or soft wire with 0.5mm to 4.0 mm 2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A. The Strip length of the Connector is about 11-12 mm. Features: Fast and easy to use The right terminal block and connector for every application Minimal space requirements enable high wiring density Clearly organized wiring in control cabinets and junction boxes Maintenance-free installation Permanent, secure connections Specifications: Rated voltage: 400V Rated current: 32A Number of poles: 5 Recording: DIN rail Wire section : 0.5 -4mm2 Number of clamps: 10 Package Includes: 1 x PCT-225D Guide Rail Type Quick Connection Terminal
