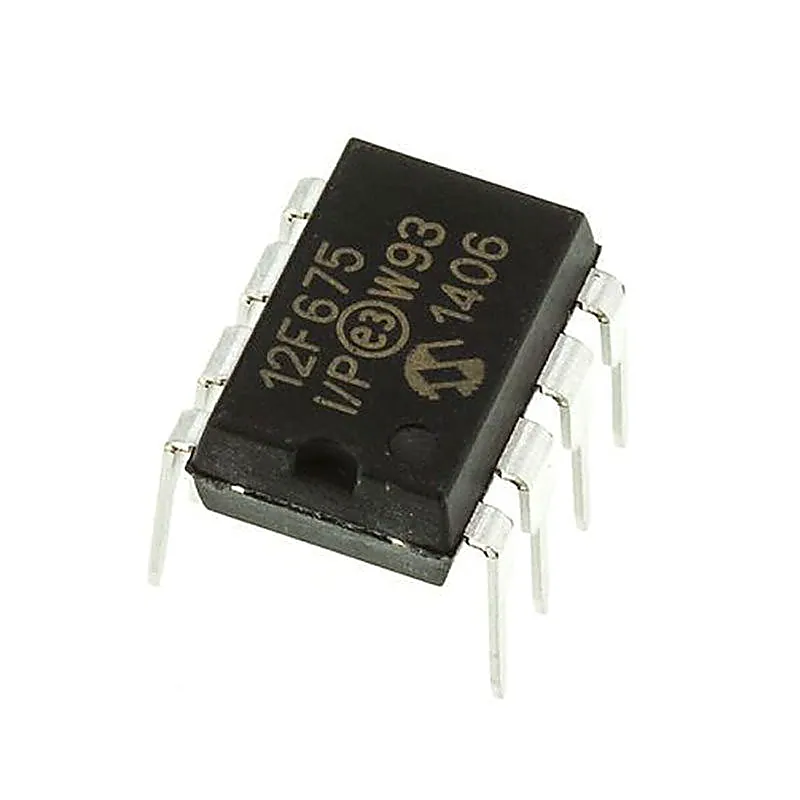

PIC12F675 Microcontroller

The PIC12F675 has a 13-bit program counter capable of addressing an 8K x 14 program memory space. The data memory is partitioned into two banks, which contain the General Purpose Registers and the Special Function Registers. The register file is organized as 64 x 8 in the PIC12F675 device. Each register is accessed, either directly or indirectly, through the File Select Register FSR. There are as many as six general purpose I/O pins available. Depending on which peripherals are enabled, some or all of the pins may not be available as general purpose I/O. In general, when a peripheral is enabled, the associated pin may not be used as a general purpose I/O pin. Features:- High-Performance RISC CPU: Only 35 Instructions to Learn All single-cycle instructions except branches Operating Speed: DC – 20 MHz oscillator/clock input DC – 200 ns instruction cycle 8-Level Deep Hardware Stack Interrupt Capability Direct, Indirect, and Relative Addressing modes Peripheral Features: 6 I/O Pins with Individual Direction Control High Current Sink/Source for Direct LED Drive Analog Comparator module with: One analog comparator Programmable on-chip comparator voltage reference (CVREF) module Programmable input multiplexing from device inputs Comparator output is externally accessible Analog-to-Digital Converter module (PIC12F675): 10-bit resolution Programmable 4-channel input Voltage reference input Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler Enhanced Timer1: 16-bit timer/counter with prescaler External Gate Input mode Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected In-Circuit Serial ProgrammingTM (ICSPTM) via two pins Specification:- Parameter Value Program Memory - Flash (Words) 1024 Data Memory - SRAM (bytes) 64 Data Memory - EEPROM (bytes) 128 I/O 6 10-bit A/D (ch) 4 Comparators 1 Timers Flash 8/16-bit 1/1 Related Document:- PIC12F675 IC Data Sheet
