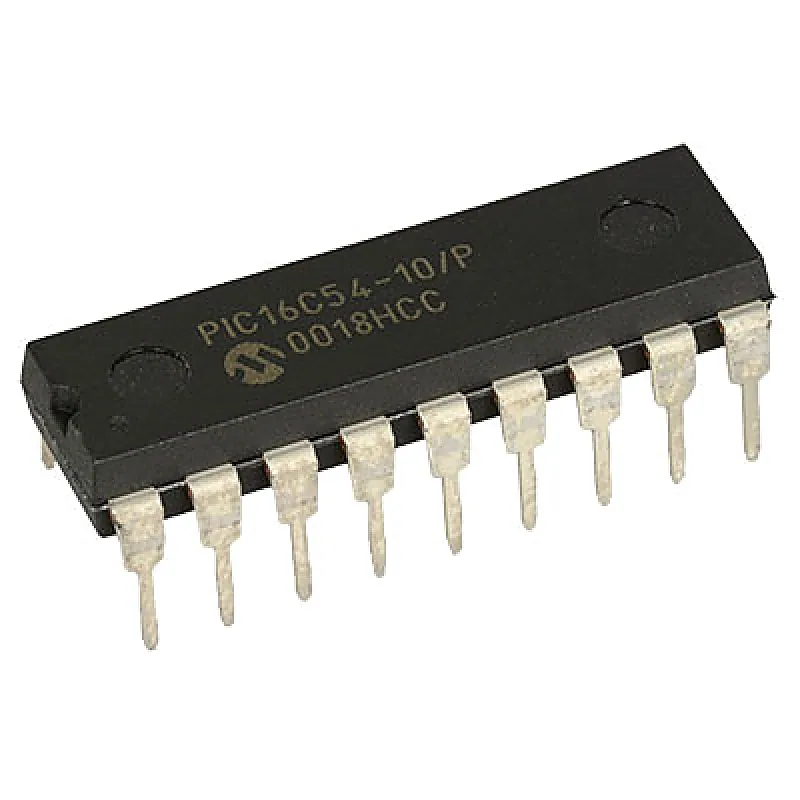

PIC16C54 Microcontroller

The PIC16C54 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 33 single-word instructions) FLASH-based 8-bit micro controller packs Microchip’s powerful PICmicro® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications. Features:- • 18-pin packaging • Baseline Core with 33 Instructions, 2 Stack Levels • All single-cycle Instructions except for program branches which are two cycles • 12-bit wide instructions • 8-bit wide data path • 25 mA source/sink current I/O • Low power (100nA) sleep current • One 8-bit timer (TMR0) • Watchdog timer (WDT) • In-Circuit Serial Programming™ • In-Circuit debugging support • Programmable code protection Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 0.75 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 25 Timers 1 x 8-bit Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 18 Related Document:- PIC16C54 IC Data Sheet
