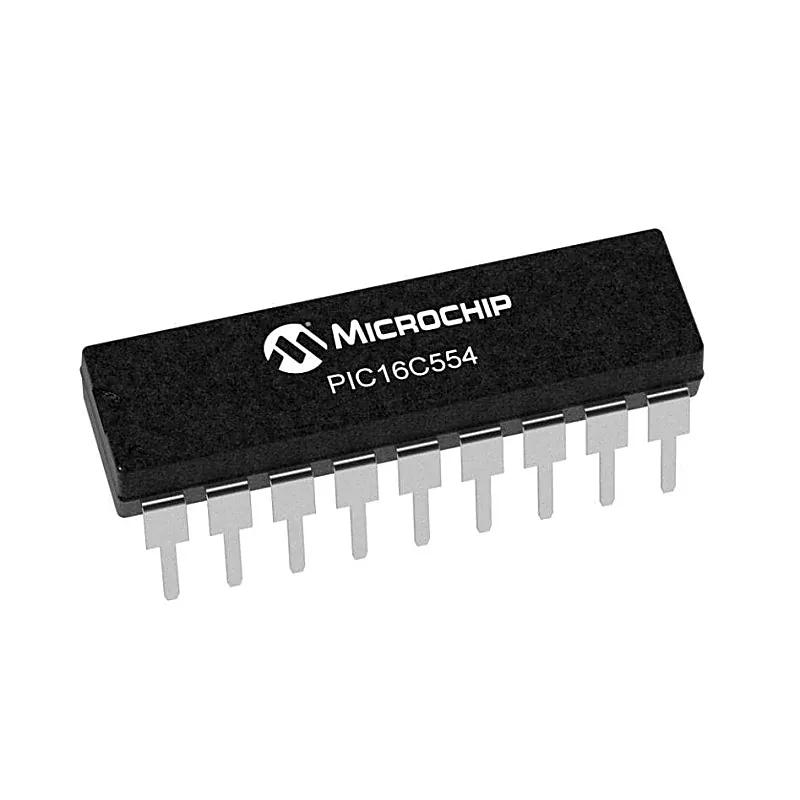

PIC16C554 Microcontroller

The PIC16C554 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit micro controller packs Microchip’s powerful PIC® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications. Features:- Only 35 instructions to learn All single-cycle instructions (200 ns), except for program branches which are two-cycle Operating speed: DC - 20 MHz clock input, DC - 20 ns instruction cycle PIC16C554: program memory 512, data memory 80 Interrupt capability 16-18 special function hardware registers 8-level deep hardware stack Direct, Indirect and Relative Addressing modes Specification:- Parameter Value Program Memory Type OTP Program Memory Size (KB) 0.875 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 80 Timers 1 x 8-bit Temperature Range (°C) -40 to 85 Operating Voltage Range (V) 2.5 to 5.5 Pin Count 18 Related Document:- PIC16C554 IC Data Sheet
