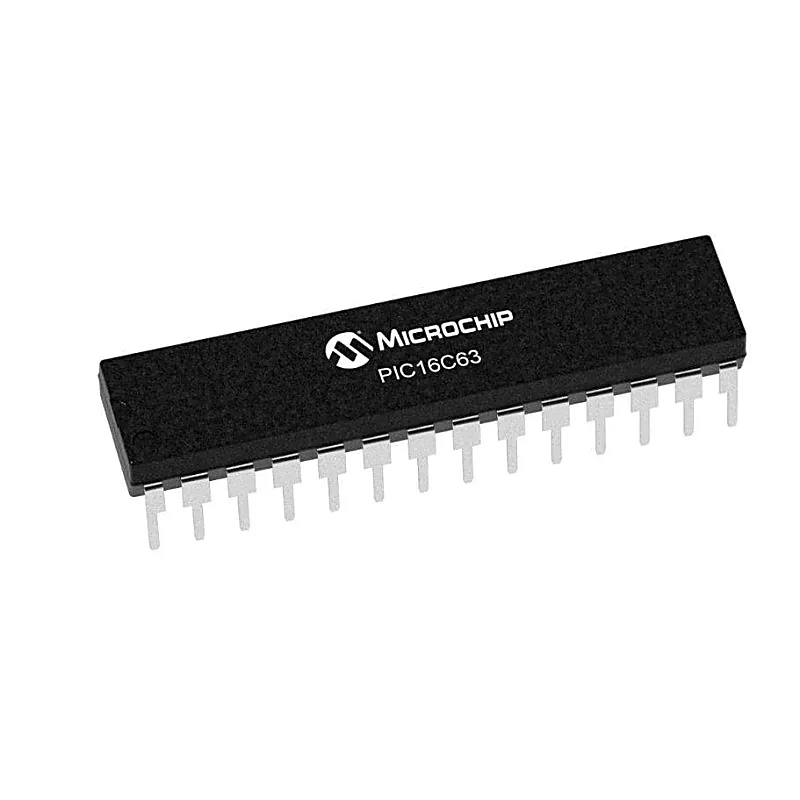

PIC16C63 Microcontroller

The PIC16C63A devices are low cost, high performance, CMOS, fully-static, 8-bit microcontrollers in the PIC16CXX mid-range family. All PIC® microcontrollers employ an advanced RISC architecture. The PIC16CXX microcontroller family has enhanced core features, eight-level deep stack and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches, which require two cycles. A total of 35 instructions (reduced instruction set) are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance. The PIC16C63 devices have 22 I/O pins. Each device has 192 bytes of RAM. In addition, several peripheral features are available, including: three timer/ counters, two Capture/Compare/PWM modules, and two serial ports. The Synchronous Serial Port (SSP) can be configured as either a 3-wire Serial Peripheral Interface (SPI) or the two-wire Inter-Integrated Circuit (I2C) bus. Features:- • High performance RISC CPU • Only 35 single word instructions to learn • All single cycle instructions except for program branches which are two cycle • Interrupt capability • Eight-level deep hardware stack • Direct, indirect and relative addressing modes • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation • Programmable code protection • Power-saving SLEEP mode • Selectable oscillator options • Low power, high speed CMOS EPROM technology Specification:- Parameter Value Program Memory Type OTP Program Memory Size (KB) 7 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 192 Timers 1 x 8-bit, 1x16 bit Temperature Range (°C) -40 to 85 Operating Voltage Range (V) 2.5 to 6 Pin Count 28 Digital Communication Peripherals 1-UART, Capture/Compare/PWM Peripherals 2 CCP, Related Document:- PIC16C63 IC Data Sheet
