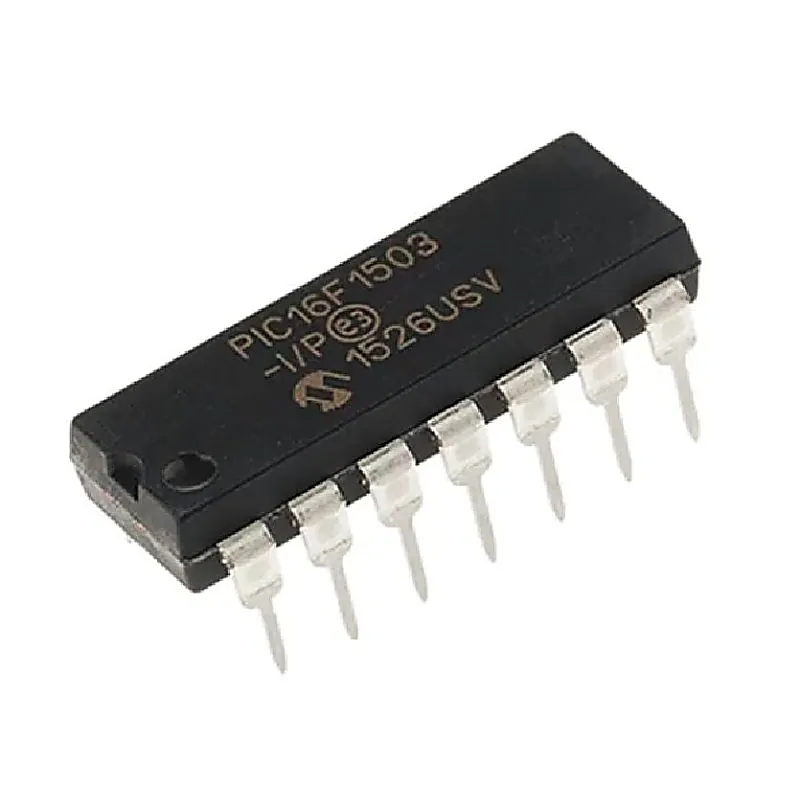

PIC16F1503 Microcontroller

The PIC16F1503-I/P is an enhanced mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash-based Microcontroller packs powerful PIC®(RISC) architecture. This product offers all of the advantages of the well-recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size, 12 general-purpose I/O pins, two comparators, 8-channel 10-bit analog-to-digital (A/D) converter, and one 5-bit digital-to-analog (D/A) converter. This device operates at a maximum frequency of 20MHz with a wide operating voltage of 1.8 to 5.5V. 49 (14-bit wide) easy instructions to learn Hardware interrupt handling with the content save Programmable brown-out reset (BOR) Power-on reset (POR) Internal voltage reference (Bandgap) Four stand-alone PWM 2x Configurable logic cell modules (CLC) 1x Complementary waveform generator (CWG)/Complementary output generator (COG) Numerically controlled oscillator (NCO) In-Circuit Serial Programming (ICSP) Applications:- Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security Specifications:- Operating Voltage : 1.8 to 5.5V. Hardware Stack : 16 level File Select Registers : 2 (16-bit) Internal Oscillator : 16MHz Digital Timers : Two 8-bit Digital Timer : One 16-bit ROM : 3.5KB RAM : 128bytes I/O pins : 12 general-purpose I/O pins Analog-to-Digital (A/D) converter : 8-channel 10-bit analog-to-digital Frequency : 20MHz Package : DIP Package Includes:- 1 x PIC16F1503 Microcontroller
