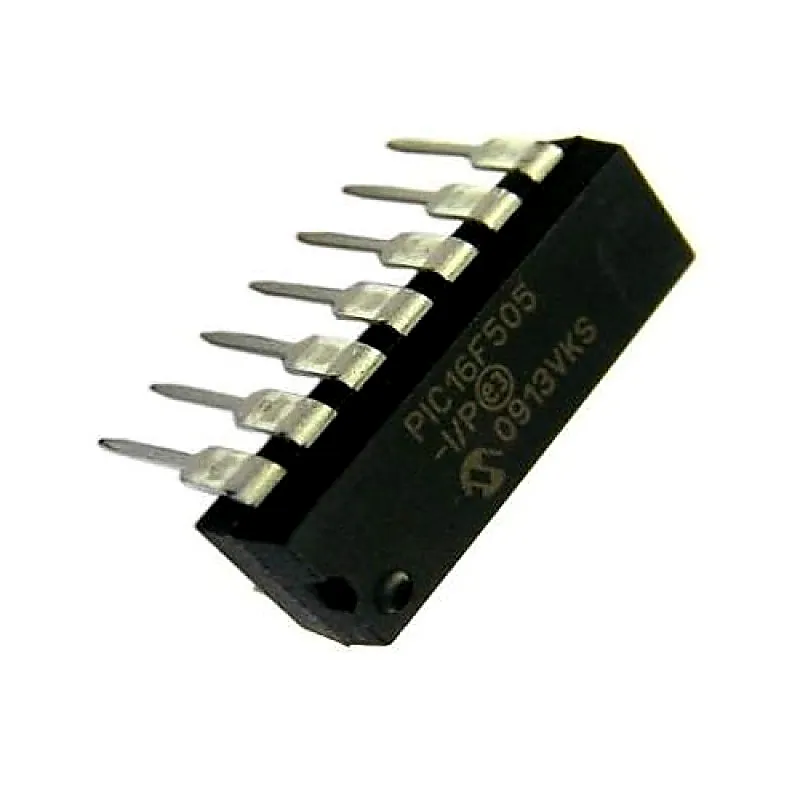

PIC16F505 Microcontroller

The PIC16F505 devices from Microchip Technology are low-cost, high-performance, 8-bit, fully-static, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (200 μs) except for program branches, which take two cycles. The PIC16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. The PIC16F505 products are equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from (six on the PIC16F505), including INTRC Internal Oscillator mode and the power-saving LP (Low-Power) Oscillator mode. Power-Saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability. The PIC16F505 devices are available in the cost-effective Flash programmable version, which is suitable for production in any volume. The customer can take full advantage of Microchip’s price leadership in Flash programmable microcontrollers, while benefiting from the Flash programmable flexibility. Features:- • 12 I/O Pins: - 11 I/O pins with individual direction control - 1 input only pin - High current sink/source for direct LED drive - Wake-on-change - Weak pull-ups • 8-Bit Real-Time Clock/Counter (TMR0) with 8-Bit Programmable Prescaler Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 1.5 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 72 Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 14 Timers 1 x 8-bit Related Document:- PIC16F505 IC Data Sheet
