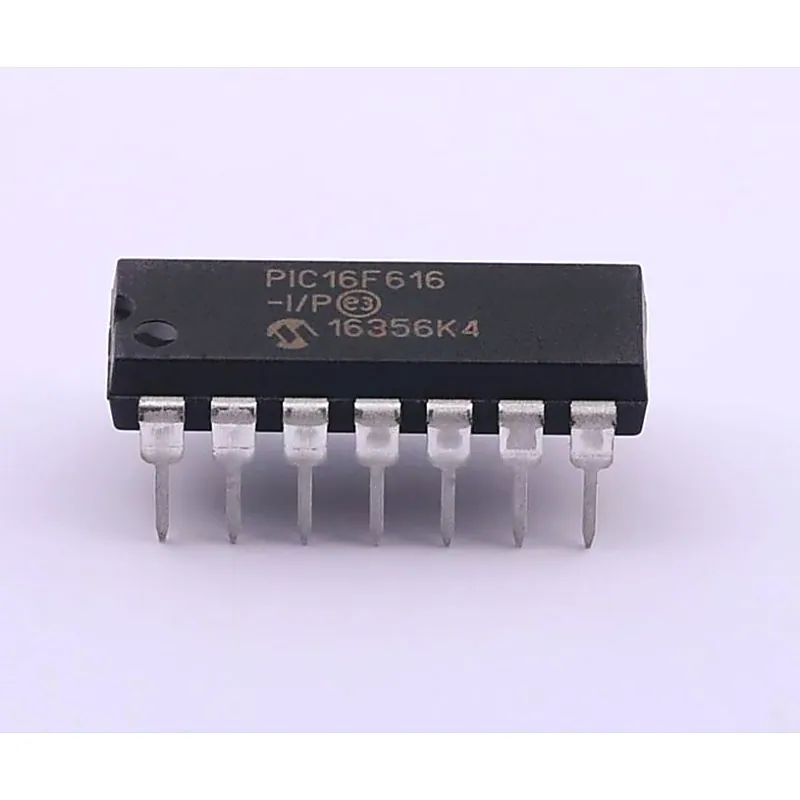

PIC16F616 Microcontroller

PIC16F616 Microcontroller The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F616 family of microcontrollers is based upon Microchip’s Mid-Range core with a 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory, up to 128 bytes RAM and Data EEPROM of up to 128 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy. Specifications:- Type of integrated circuit : PIC microcontroller Program memory : 3.5kB SRAM memory capacity : 128B Clock frequency : 20MHz Interface : ICSP Mounting : THT Case : DIP14 Number of inputs/outputs : 12/11 Number of 8bit timers : 2 Number of 16bit timers : 1 Kind of architecture : Harvard 8bit Family : PIC16 Number of capacitive channels : 8 Kind of package : tube Operating temperature : -40...85°C Number of comparators : 2 Flash memory capacity : 3500B Terminal pitch : 2.54mm Operating frequency : 0...20MHz Built-in generator : 4MHz, 8MHz Package Includes:- 1 x PIC16F616 Microcontroller
