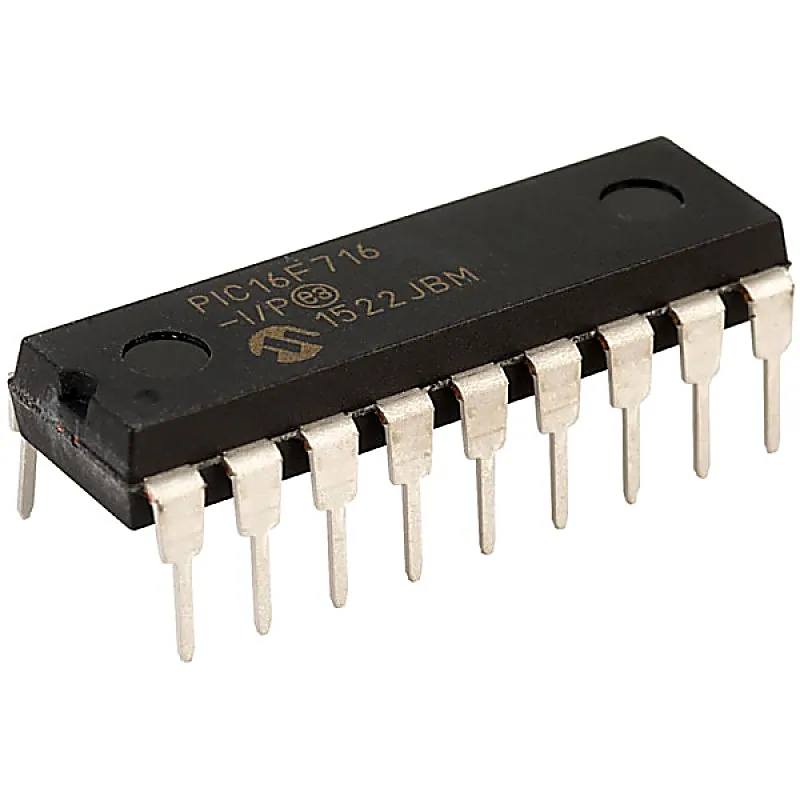

PIC16F716 Microcontroller

The PIC16F690 is a 8-bit Flash-based Microcontroller with A/D Controller and Enhanced Capture/Compare PWM . The following are the features:- • Timer0: 8-bit timer/counter with 8-bit prescaler • Timer1: 16-bit timer/counter with prescaler can be incremented during Sleep via external crystal/clock • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler • Enhanced Capture, Compare, PWM module: - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM maximum resolution is 10-bit - Enhanced PWM: - Single, Half-Bridge and Full-Bridge modes - Digitally programmable dead-band delay - Auto-shutdown/restart • 8-bit multi-channel Analog-to-Digital Converter • 13 I/O pins with individual direction control • Programmable weak pull-ups on PORTB Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 3.5 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 128 Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 18 Timers 2 x 8-bit, 1 x 16-bit ADC Input 12 ch, 10-bit Capture/Compare/PWM Peripherals 1 ECCP Related Document:- PIC16F716 IC Data Sheet
