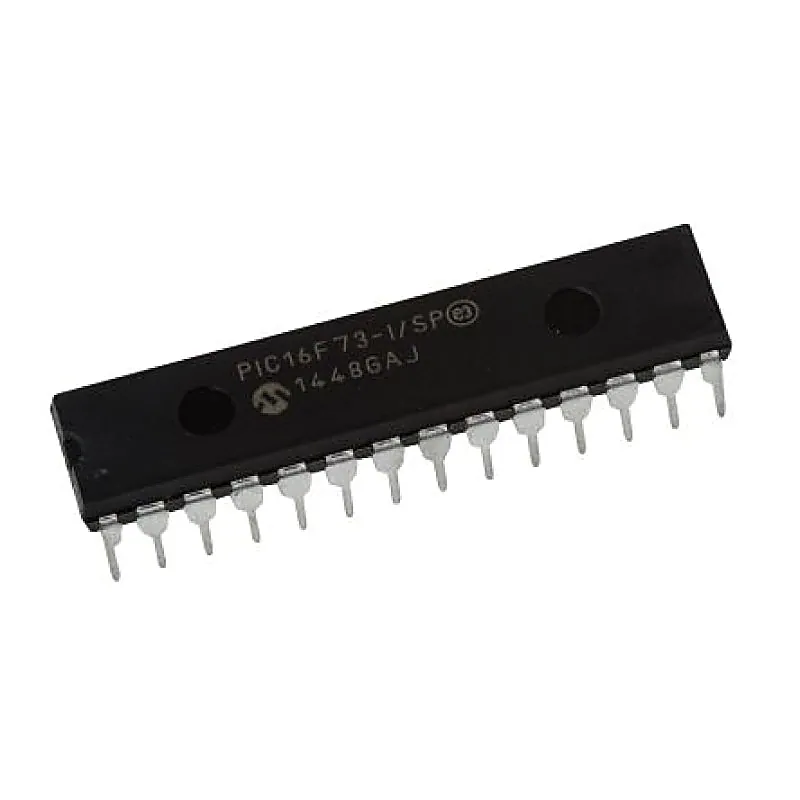

PIC16F73 Microcontroller

The PIC16F73 is a 28/40-Pin 8-Bit CMOS FLASH Microcontrollers . The following are the features:- • Timer0: 8-bit timer/counter with 8-bit prescaler • Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler • Capture, Compare, PWM (CCP) module - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit • 8-bit, 5-channel analog-to-digital converter • Synchronous Serial Port (SSP) with SPI™ (Master/Slave) and I2C™ (Slave) • Brown-out detection circuitry for Brown-out Reset (BOR) Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 7 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 192 Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 28 Timers 2 x 8-bit, 1 x 16-bit ADC Input 5 ch, 8-bit Capture/Compare/PWM Peripherals 2 Input Capture, 2 CCP Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C) Related Document:- PIC16F73 IC Data Sheet
