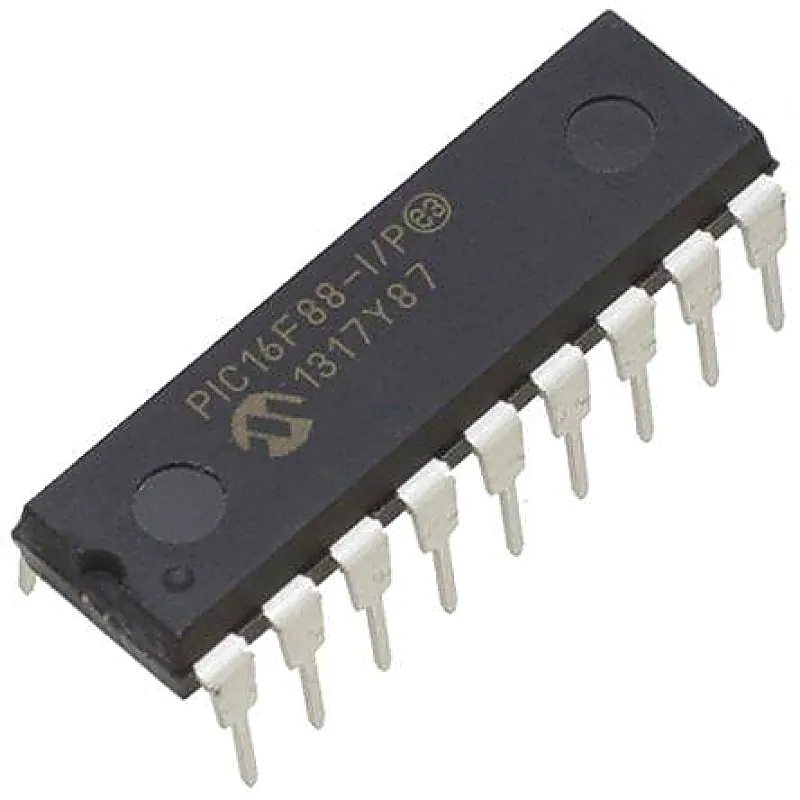

PIC16F88 Microcontroller

The PIC16F88 is a18/20/28-Pin Enhanced Flash MCUs with nanoWatt Technology. The following are the features:- • Capture, Compare, PWM (CCP) module: - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit • 10-bit, 7-channel Analog-to-Digital Converter • Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave) • Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-bit address detection: - RS-232 operation using internal oscillator (no external crystal required) • Dual Analog Comparator module: - Programmable on-chip voltage reference - Programmable input multiplexing from device inputs and internal voltage reference - Comparator outputs are externally accessible Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 7 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 368 Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 18 Timers 2 x 8-bit, 1 x 16-bit ADC Input 7 ch, 10-bit Capture/Compare/PWM Peripherals 1 Input Capture, 1 CCP Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C) Data EEPROM/HEF (bytes) 256 Related Document:- PIC16F88 IC Data Sheet
