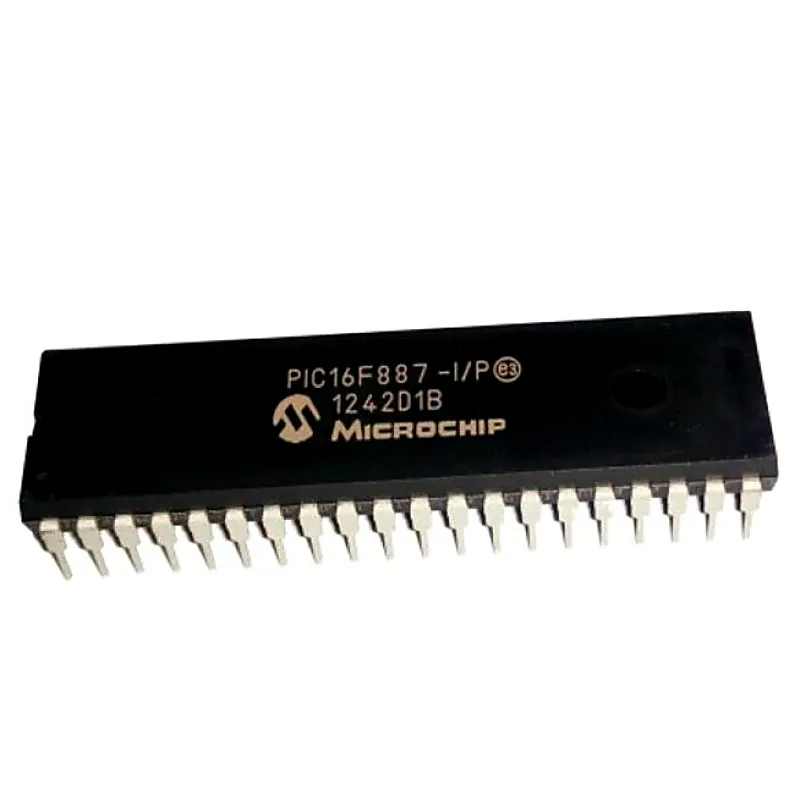

PIC16F887 Microcontroller

The PIC16F887 is a 8/40/44-Pin Flash-Based, 8-Bit CMOS Microcontroller . The following are the features:- • 24/35 MO Pins With Individual Direction Control - High current source/sink for direct LED drive - Interrupt-on-Change pin - Individually programmable weak pull-ups - Ultra Low-power Wake-up (LJLPWU) • Analog Comparator Module With: - TWO analog comparators - Programmable on-chip voltage reference (CVREF) module (% of VDD) - Fixed Voltage Reference (0.6V) - Comparator inputs and outputs external accessible - SR Latch mode - External Timerl Gate (count enable) • AID Converter: ID-bit resolution and 11/14 channels • TimerO 8-bit Timer/Counter With 8-bit rammable Prescaler Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 14 CPU Speed (MIPS/DMIPS) 5 SRAM (B) 368 Temperature Range (°C) -40 to 125 Operating Voltage Range (V) 2 to 5.5 Pin Count 40 Timers 2 x 8-bit, 1 x 16-bit ADC Input 14 ch, 10-bit Capture/Compare/PWM Peripherals 2 Input Capture, 1 CCP Digital Communication Peripherals 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C) Data EEPROM/HEF (bytes) 256 Related Document:- PIC16F887 IC Data Sheet
