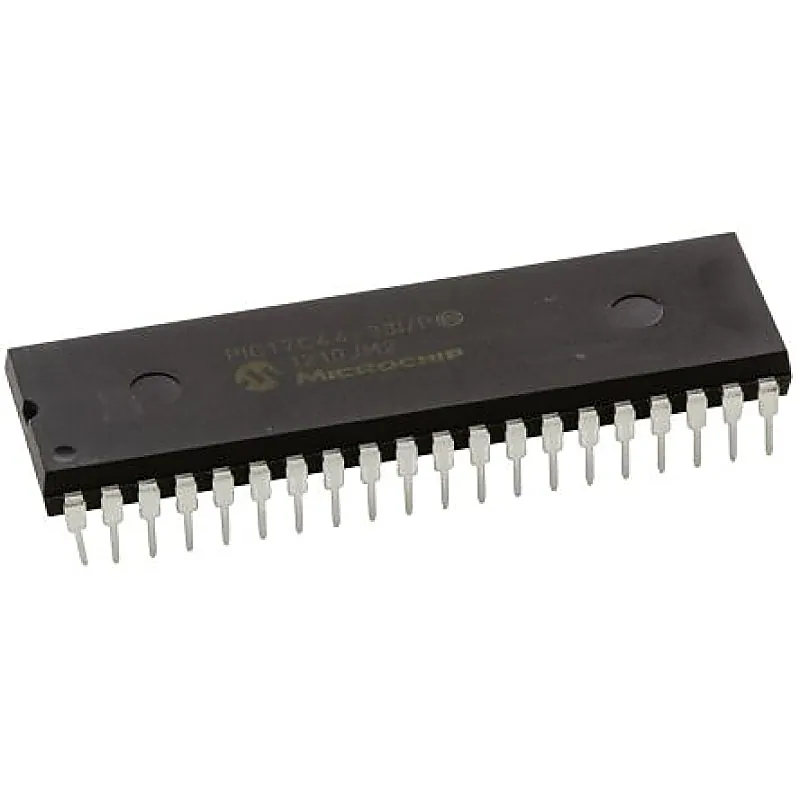

PIC17C44 Microcontroller
PIC17C44 Microcontroller
The PIC17C44 is a High-Performance 8-Bit CMOS EPROM/ROM Microcontroller . The following are the features:- • 33 I/O pins with individual direction control • High current sink/source for direct LED drive - RA2 and RA3 are open drain, high voltage (12V), high current (60 mA), I/O • Two capture inputs
+ 18% GST (added at checkout)
In stock — 344 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The PIC17C44 is a High-Performance 8-Bit CMOS EPROM/ROM Microcontroller . The following are the features:- • 33 I/O pins with individual direction control • High current sink/source for direct LED drive - RA2 and RA3 are open drain, high voltage (12V), high current (60 mA), I/O • Two capture inputs and two PWM outputs - Captures are 16-bit, max resolution 160 ns - PWM resolution is 1- to 10-bit • TMR0: 16-bit timer/counter with 8-bit programmable prescaler • TMR1: 8-bit timer/counter Specification:- Parameter Value Program Memory Type Flash Program Memory Size (KB) 8.25 SRAM (B) 454 Temperature Range (°C) -40 to 85 Operating Voltage Range (V) 2 to 6 Pin Count 40 Timers 2 x 8-bit, 1 x 16-bit Related Document:- PIC17C44 IC Data Sheet
