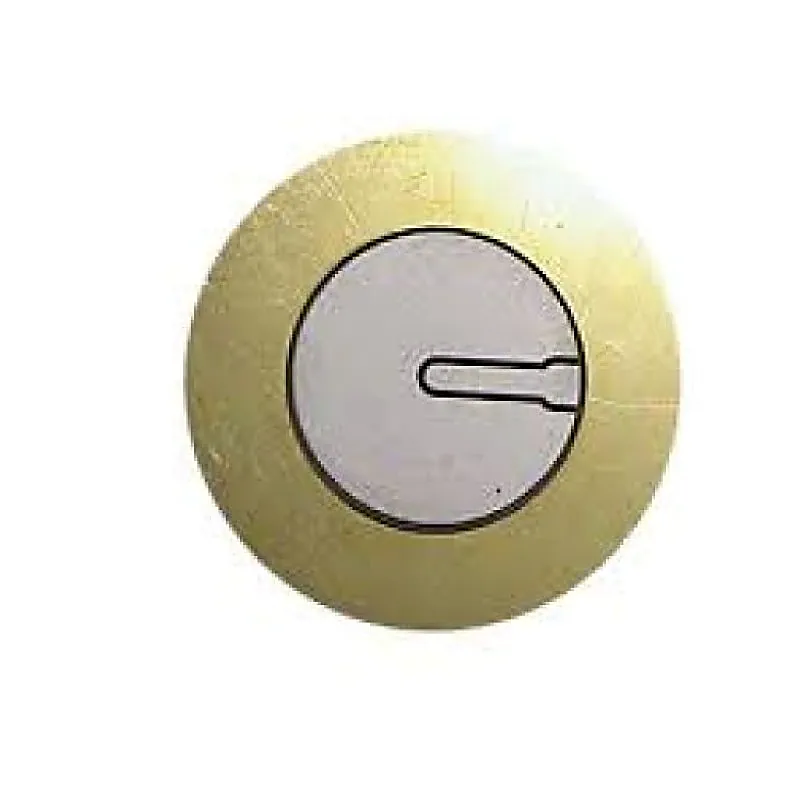

Piezo Electric Sensor (Piezo Buzzer Ceramic Plate) - 27mm
Piezo Electric Sensor (Piezo Buzzer Ceramic Plate) - 27mm
A piezoelectric sensor/element is a device that uses the piezoelectric effect, it is basically a device which converts voltage to vibration and vibration to voltage. It normally comes in handy to measure knock (knock sensor) or vibration (vibration sensor). Now a days it is also used extensively in
+ 18% GST (added at checkout)
In stock — 5216 units ready
- Resonance Frequency: 4.6 Khz +/- 0.5 Khz
- Resonance Impedance: 200 Ohms
- Capacitance: 20nF +/- 30% at 1 Khz
- Operating Temperature -20...+70 C
- Storage Temperature -30...+80 C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
A piezoelectric sensor/element is a device that uses the piezoelectric effect, it is basically a device which converts voltage to vibration and vibration to voltage. It normally comes in handy to measure knock (knock sensor) or vibration (vibration sensor). Now a days it is also used extensively in power generation projects e.g. Foot Step Power Generation. Specifications:- Resonance Frequency: 4.6 Khz +/- 0.5 Khz Resonance Impedance: 200 Ohms Capacitance: 20nF +/- 30% at 1 Khz Operating Temperature -20...+70 C Storage Temperature -30...+80 C
