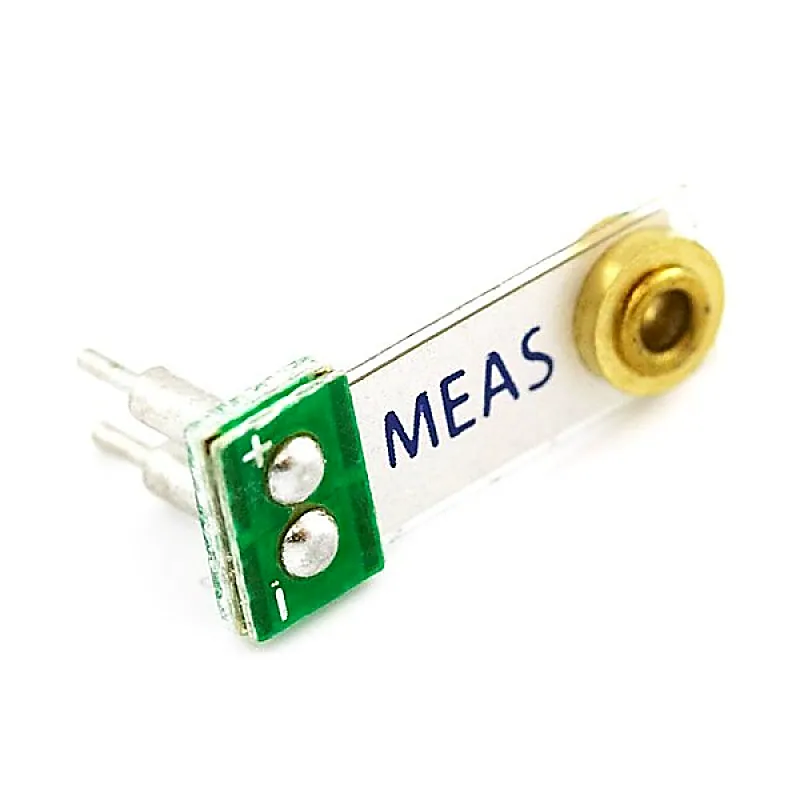

Piezo Vibration Sensor - Small Horizontal

The Piezo Vibration Sensor Small Horizontal is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. The pins are designed for easy installation and are solderable. Horizontal and vertical mounting options are offered as well as a reduced height version. The active sensor area is shielded for improved RFI/EMI rejection. Rugged, flexible PVDF sensing element withstands high shock overload. The sensor has excellent linearity and dynamic range and may be used for detecting either continuous vibration or impacts. It comes with machine pins that allow for horizontal mounting. We've seen this used as great musical inputs. Applications: Washing Machine Load Imbalance Vehicle Motion Sensor Anti-Theft Devices Vital Signs Monitoring Tamper Detection Impact Sensing Features: Flexible PVDF Piezo Polymer Film Wide dynamic range Laminated for higher voltage output Breadboard friendly leads. Package Includes: 1 x Piezo Vibration Sensor Small Horizontal. Specifications :- Voltage Sensitivity (V/g) 6 (open-circuit, at resonance) Charge Sensitivity (pC/g) 260 Resonance Frequency (Hz) 75 Upper Limiting Frequency (+3 dB) (Hz) 42 Linearity (%) 1 Dissipation Factor 0.018 Storage Temperature (C) -40 ~ +80 Operating Temperature (C) -20 ~ +60 Length (mm) 18 Width (mm) 7 Height (mm) 10 Weight (gm) 2
