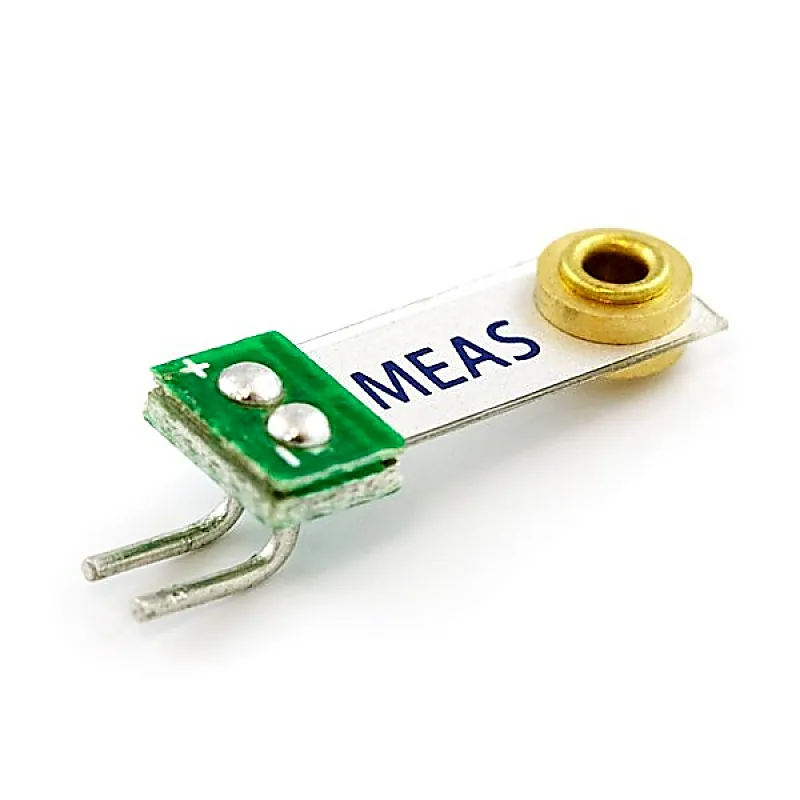

Piezo Vibration Sensor - Small Vertical

The Piezo Vibration Sensor Small Vertical from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and tap inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. It can also be used for impact sensing or a flexible switch. It comes with solder pins that allow for vertical mounting. Applications: Washing Machine Load Imbalance Vehicle Motion Sensor Anti-Theft Devices Vital Signs Monitoring Tamper Detection Impact Sensing Features: Flexible PVDF Piezo Polymer Film. Wide dynamic range. Laminated for higher voltage output. Breadboard friendly leads. Package Includes: 1 x Piezo Vibration Sensor Small Vertical. Specifications :- Voltage Sensitivity (V/g) 6 (open-circuit, at resonance) Charge Sensitivity (pC/g) 260 Resonance Frequency (Hz) 75 Upper Limiting Frequency (+3 dB) (Hz) 42 Linearity (%) 1 Dissipation Factor 0.018 Storage Temperature (C) -40 ~ +80 Operating Temperature (C) -20 ~ +60 Length (mm) 18 Width (mm) 7 Height (mm) 6 Weight (gm) 2
