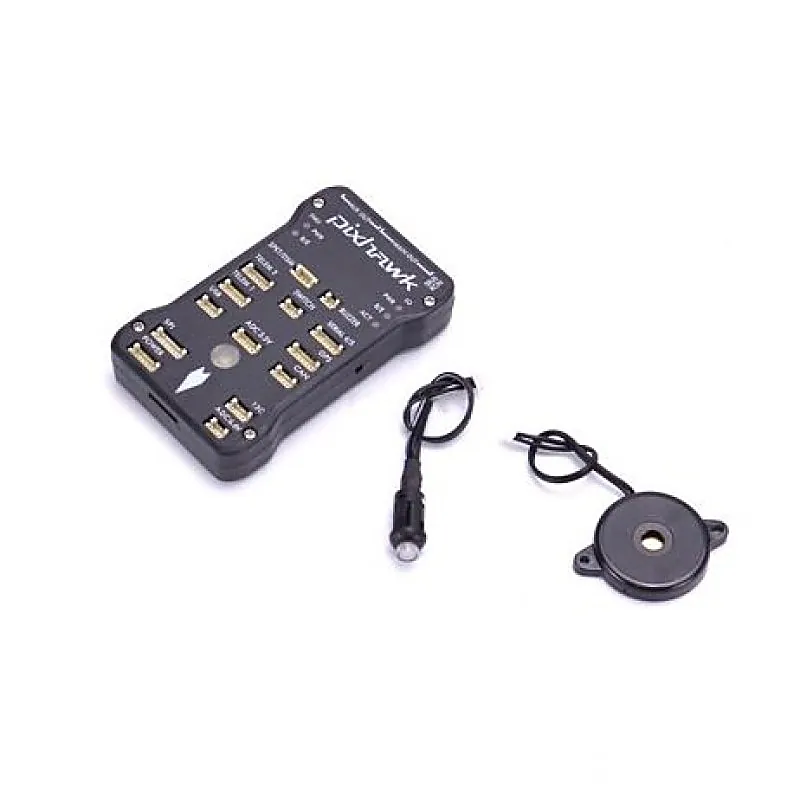

Pixhawk PX4 2.4.7 32Bits Flight Controller for Quadcopter Multicopter

Are you want to be an Electronic Geek in the future and want to build your own drone then this Flight controller is best for you. The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESCs), which translates this desired speed into a signal that the motors can understand. Pixhawk PX4 2.4.7 32Bits Flight Controller for Quadcopter Multicopter board is a new Version Redeveloped and optimized circuit without changing components integrated with PX4FMU+PX4IO . Pixhawk is with a new 32-bit chip and sensor technology. It detects and configures all its peripherals automatically The benefits of the Pixhawk system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. Its an Advanced 32 bit CortexM4 ARM high-performance processor, can run RTOS NuttX real-time operating system. Integrated backup power supply and failure backup controller. The main controller can be safely switched to backup control. It can Provide redundant power input and fault transfer functions. US interface UART, I2C, SPI, CAN Provide automatic and manual mode.14 x PWM/ actuator output. Color LED lamp. Multi-tone buzzer interface.Micro SD to record flight data Options: PPM encoder for RC receivers that do not provide PPM output External USB and LED module for convenient status indicator and micro-USB port on your vehicle Digital airspeed sensor for fixed-wing aircraft Telemetry radios with one-mile range for two-way control, telemetry, and data logging via free mobile apps or PC/Mac/Linux ground station u-blox GPS with compass (required for autonomous flight) Softwares : Official MissionPlanner, ECLIPSE firmware Features : Processor : 32bit STM32F427 Cortex M4 core with FPU 168 MHz 256 KB RAM 2 MB Flash The 32-bit STM32F103 failsafe co-processor Sensors: ST Micro L3GD20H 16 bit gyroscope ST Micro 3CLDW 303H 14 bit accelerometer/magnetometer Invensense MPU 6000 3-axis accelerometer/gyroscope MEAS MS5611 barometer Interfaces: 5x UART (serial ports), one high-power capable, 2x with HW flow control 2x CAN (one with an internal 3.3V transceiver, one on expansion connector) Spektrum DSM / DSM2 / DSM-X Satellite compatible input Futaba S.BUS compatible input and output PPM sum signal input RSSI (PWM or voltage) input I2C SPI 3.3 and 6.6V ADC inputs The internal micro USB port and external micro USB port extension Power System and Protection : Ideal diode controller with automatic failover Servo rail high-power (max. 10V) and high-current (10A+) ready All peripheral outputs over-current protected, all inputs ESD protected Highlights: New Version Redeveloped and optimized circuit without changing components 168 MHz / 252 MIPS Cortex-M4F 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliaries, high-power compatible) Abundant connectivity options for additional peripherals (UART, I2C, CAN) Integrated backup system for in-flight recovery and manual override with a dedicated processor and stand-alone power supply (fixed-wing use) The backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed-wing use) Redundant power supply inputs and automatic failover External safety switch Multicolor LED main visual indicator High-power, multi-tone piezo audio indicator MicroSD card for high-rate logging over extended periods of time Package Includes: 1 x Pixhawk V2.4.7 Flight board with Original Shell 1 x Teflon safety switch 1 x Buzzer Attachments : Download
