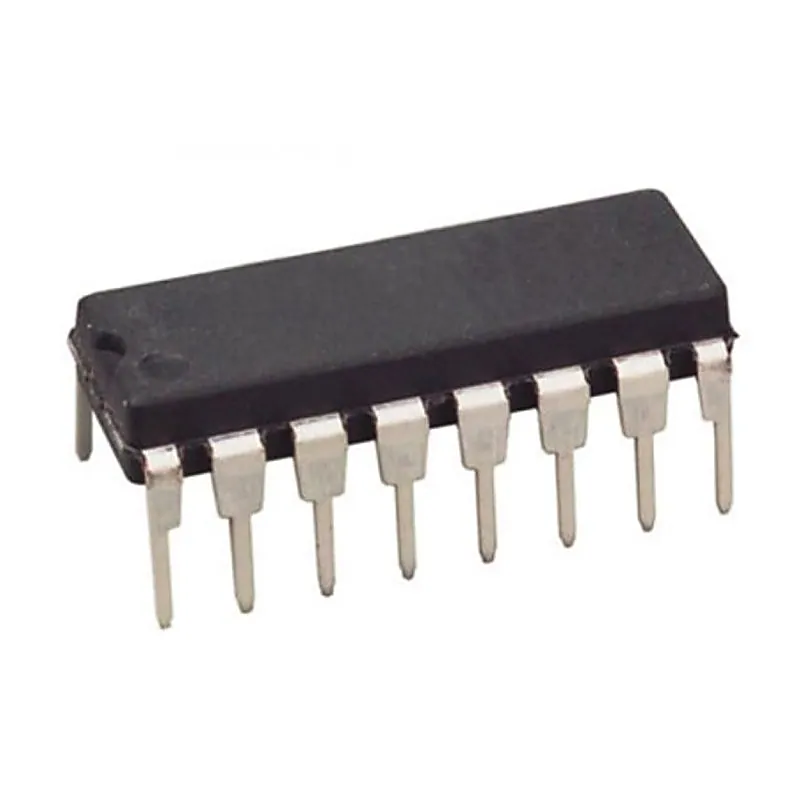

PS2501-4 IC - 4-Channel Optocoupler IC

The PS2501-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon photo transistor. The PS2501-4 are in a plastic DIP (Dual In-line Package) and the PS2501L-4 are lead bending type (Gull-wing) for surface mount. Features:- • High isolation voltage (BV = 5 000 Vr.m.s.) • High collector to emitter voltage (VCEO = 80 V) • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.) • Safety standards - UL approved: File No. E72422 Application:- • Power supply • Telephone/FAX. • FA/OA equipment • Programmable logic controller Specification:- Symbol Parameter Value Unit IF Forward current 80 mA PD Power dissipation 120 mW VR Reverse Voltage 6 V Tstg Storage temperature range −55 to +150 °C TOPR Operating Temperature −55 to +100 °C IFP Peak Forward Current 1 A BV Isolation Voltage 5000 Vr.m.s VCEO Collector-emitter breakdown voltage 80 V VECO Emitter-collector voltage 7 V Related Document:- PS2501-4 IC Data Sheet
