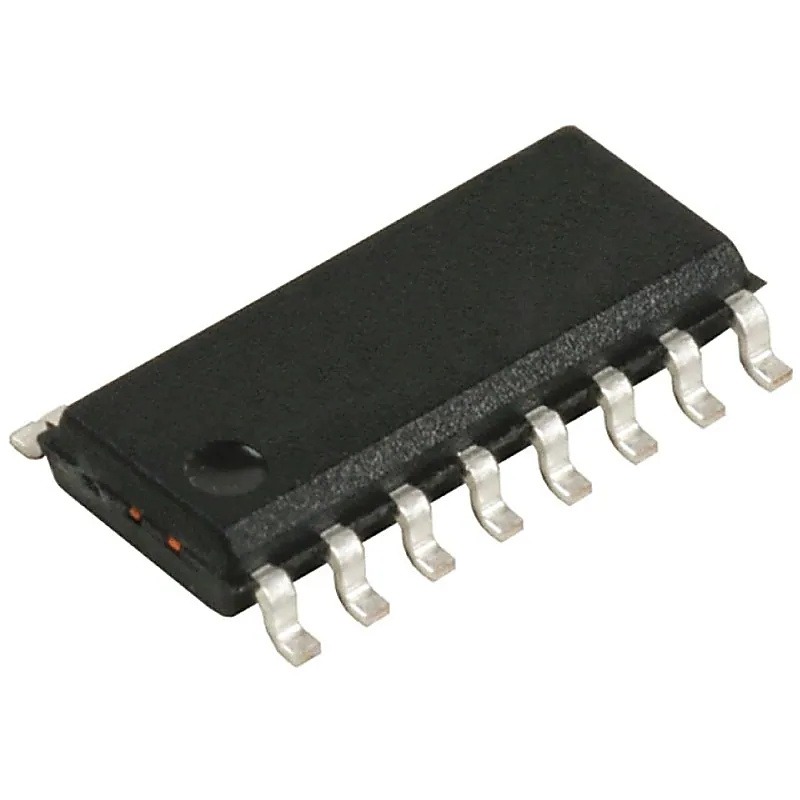

PS2801-4 - (SMD SOP-16 Package) - NEC/CEL Transistor Output Optocoupler

The PS2801-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon photo transistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light. Features:- • High isolation voltage (BV = 2 500 Vr.m.s.) • Small and thin package (4,16-pin SSOP, Pin pitch 1.27 mm) • High collector to emitter voltage (VCEO = 80 V) • High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.) • Ordering number of tape product: PS2801-1-F3, PS2801-4-F3 • Pb-Free product • Safety standards - UL approved: No. E72422 - BSI approved (BS EN 60065, BS EN 60950) - CSA approved: No. CA 101391(CA5A, CAN/CSA-C22.2 60065, 60950) - DIN EN 60747-5-5 (VDE 0884-5) approved (Option) Applications:- • Programmable logic controllers • Measuring instruments • Power supply • Hybrid IC Specification:- Symbol Parameter Rating Units IF Forward Current (DC) 50 mA/ch VR Reverse voltage 6 V ΔPD/°C Power dissipation 0.8 mW/°C PD Power Dissipation 80 mW/ch IFP Peak Forward Current 1 A/ch VCEO Collector-emitter voltage 80 V VECO Emitter-collector voltage 6 V IC Collector current 50 mA PC Collector power dissipation 150 mW ΔPC/°C Power Dissipation Derating 1.2 mW/°C PC Power Dissipation 120 mW/ch TA Operating Ambient Temperature −55 to +150 °C Tstg Storage temperature −55 to +150 °C BV Isolation Voltage 2 500 Vr.m.s. Related Document:- PS2801-4 SMD Data Sheet
