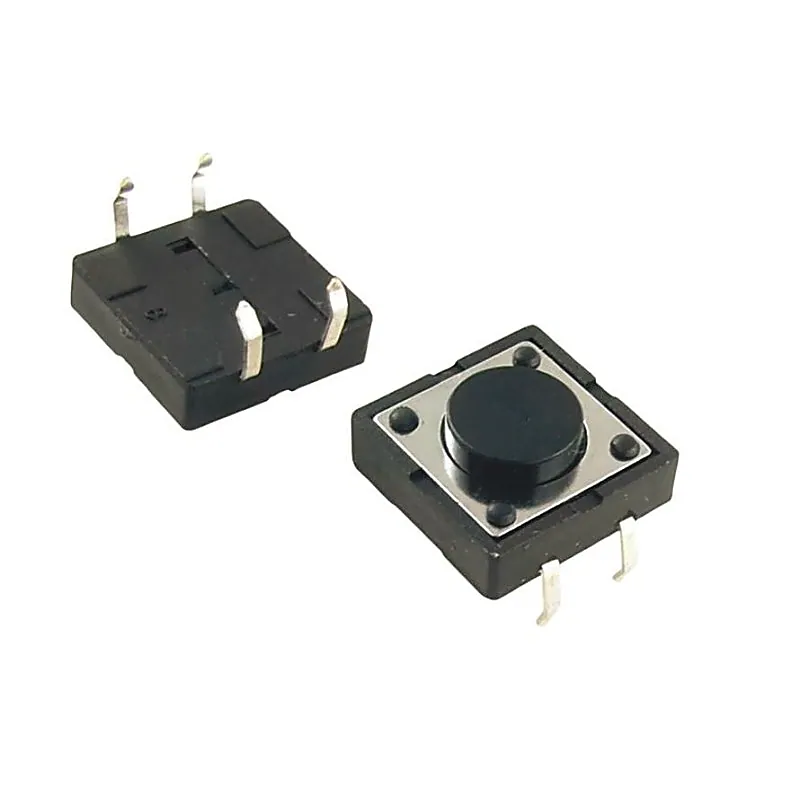

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch. An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another.Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Features and Specifications:- Body Material : Plastic Operating Voltage : 12V Operating Current : 50mA Pin Count : 4-pin Switch Type : Push Button Tactile/Microswitch Through-hole design Shaft Shape : Round High operating force (3.0N or 3.6N) suited to automotive equipment requirements The long life of 300,000 cycles realized despite the high operating force Contact Material : Brass Contact Resistance : 50mΩ Insulation Resistance : 100MΩ Operating Temperature Range : -20°C to +70°C Operation Force : 3-5N Length: 12mm Width: 12mm Height: 5mm Weight: 1gm Package Includes:- 1 x Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch
