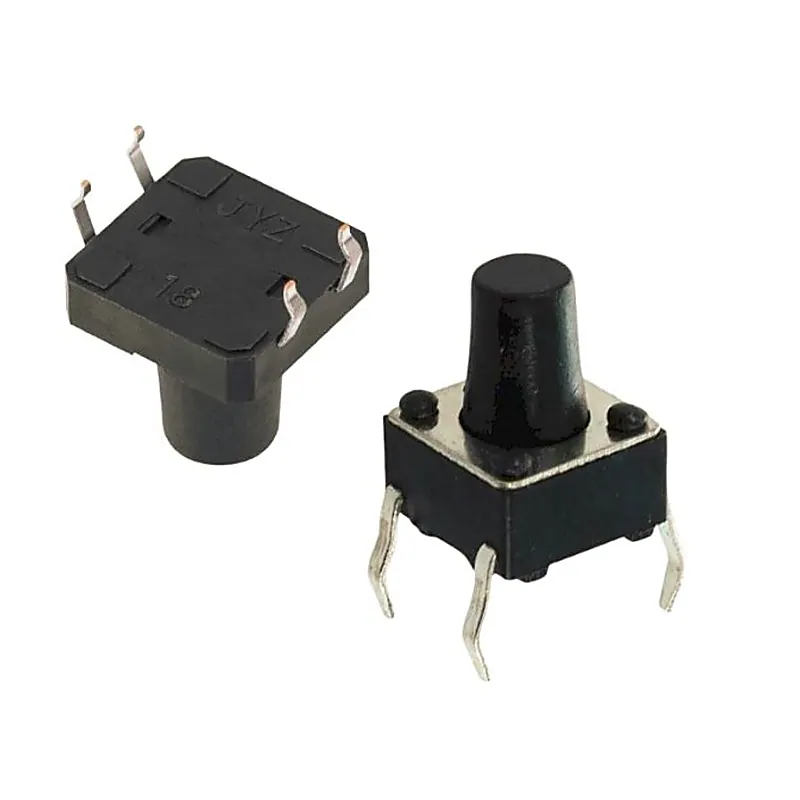

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height. 12x12x10 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals. Features and Specifications:- Operating Voltage : 12V Operating Current : 50mA Tactile/Microswitch Through-hole design Shaft Shape : Round Contact Material : Brass Contact Resistance : 50mΩ Insulation Resistance : 100MΩ Operating Temperature Range : -20°C to +70°C Operation Force : 3-5N Body Material : Plastic Pin Count : 4-pin Length : 12mm Width : 12mm Height : 10mm Weight : 1gm Package Includes:- 1 x Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height
