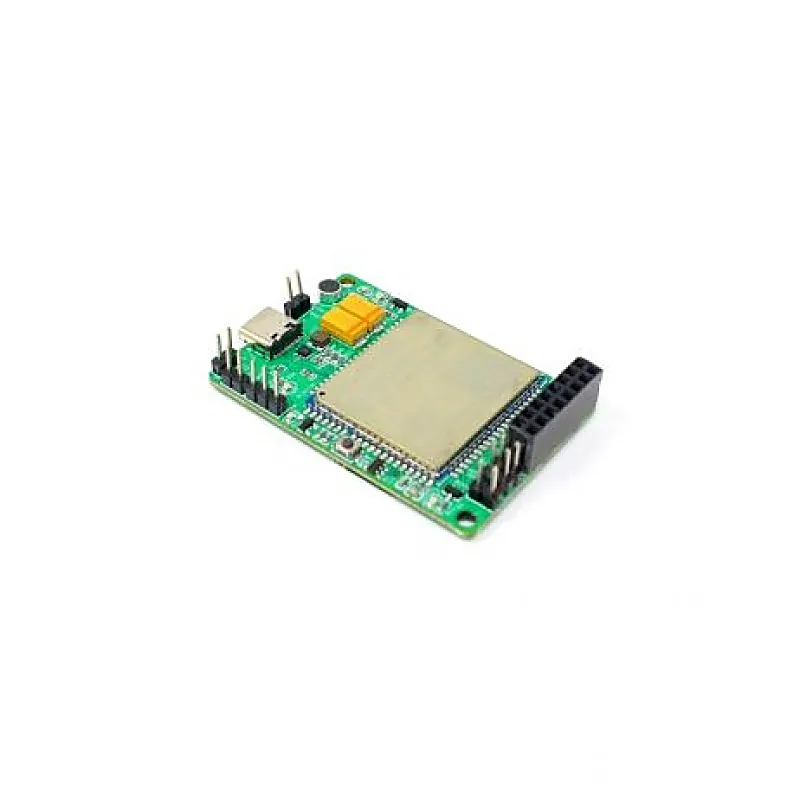

Quectel EC200U 4G/GSM Module without GPS for data logging applications.

The Quectel EC200U 4G module (without GNSS), represents a compact and versatile cellular communication solution tailored for applications requiring reliable 4G connectivity without the need for Global Navigation Satellite System (GNSS) capabilities. Note: The product is incompatible with USB PD and USB-C to USB-C cables. Features: Quectel EC200U 4G Module Compact Design 4G Connectivity No GNSS Functionality Versatile Applications Embedded SIM (eSIM) Support Low Power Consumption Secure Communication Remote Management Specifications: Power Supply- Supply Voltage (Vbat): 3.7V 4V USB-C: 3.7V 5V Typical Supply Voltage: 3.8V LTE Features- Support CAT 1 FDD & TDD Max 10 Mbps (DL) | Max 5 Mbps (UL) GSM Features- Support GPRS multi-slot class 12 Coding Scheme: CS-1, CS-2, CS-3 & CS-4 Max 85.6 Kbps (DL) | Max 85.6 Kbps (UL) Internet Protocol- Support:TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HT TPS/ FTPS/SSL/FILE/MQTT/MMS protocols SMS- Text and PDU mode Point to point MO and MT SMS cell broadcast SIM Interface- Support nano SIM card UART Interface- For AT communication & data Transmission Baud rates up to 921600 bps; 115200 bps by Default Support MAIN_RTS & MAIN_CTS Hw flow control AT Commands- Compliant with 3 GPP TS 27.007, 27.005 and Quectel enhanced AT command Antenna Interfaces- Main antenna interface (ANT_MAIN) GNSS antenna interface (ANT_GNSS) Physical Dimension- 37.97mm x 55.7mm x 4mm Package Includes: 1 x Quectel EC200U 4G/GSM Module without GPS for data logging applications. Attachments : Download
