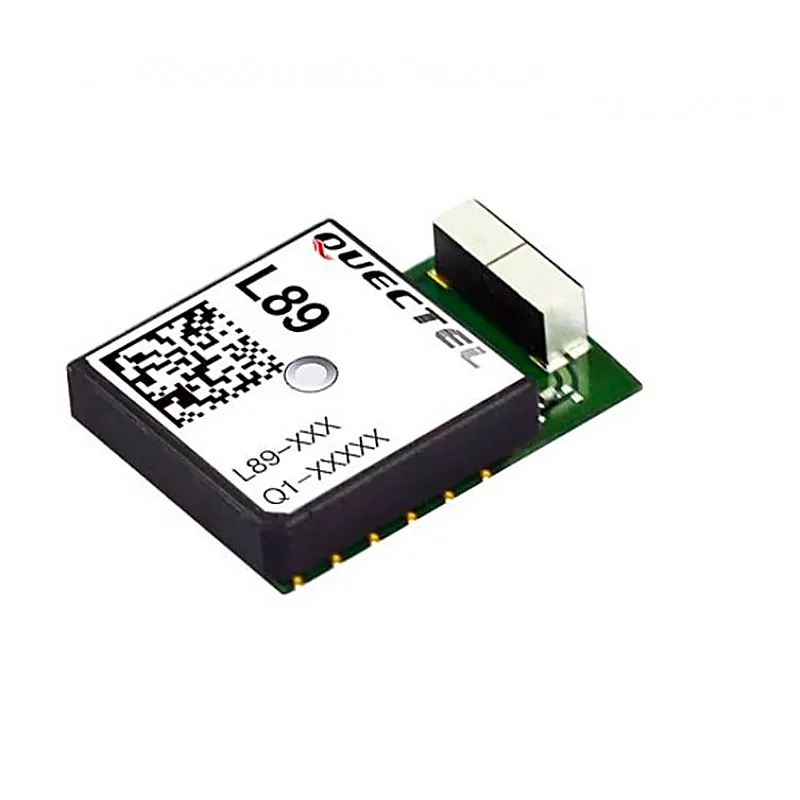

Quectel L89HA GNSS Module IRNSS-enabled

L89 is a high performance GNSS module supporting multi-constellation GNSS and dual GNSS bands. It can acquire and track GPS, Indian Regional Navigation Satellite System (IRNSS), GLONASS, BeiDou, Galileo and QZSS signals. With 2 embedded antennas, the module can work at L1 and L5 bands simultaneously. Compared with the GNSS module working at L1 band only, L89 can generally increase the number of visible satellites, reduce TTFF and enhance positioning accuracy, especially when driving in rough urban environments. L89 achieves exceptional performance both in acquisition and tracking, and fully meets the industrial standard. With embedded LNA, dual antennas and antenna switch function, it is an ideal product for automotive, consumer and industry tracking applications. Features:- Support IRNSS L5 band Embedded patch antenna and chip antenna Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN) Integrated LNAs for better sensitivity Great anti-jamming performance due to multi-tone active interference canceller Support SDK commands developed by Quectel Specifications:- Brand: Quectel Dimension:25.0mm × 16.0mm × 6.8mm Protocols: NMEA 0183 Weight: Approx. 8.2g Power Supply:3.1V~4.3V, typical 3.3V RoHS: Compliant Temperature Range:-40~85 C GNSS Receiving Bands: GPS L1/Galileo E1 C/A: 1575.42MHz, IRNSS L5 C/A: 1176.45MHz, GLONASS L1 C/A:1602.5625MHz, BD2 B1 C/A: 1561.098MHz Interfaces:I2C, UAR Package Includes:- 1 x Quectel L89HA GNSS Module IRNSS-enabled
