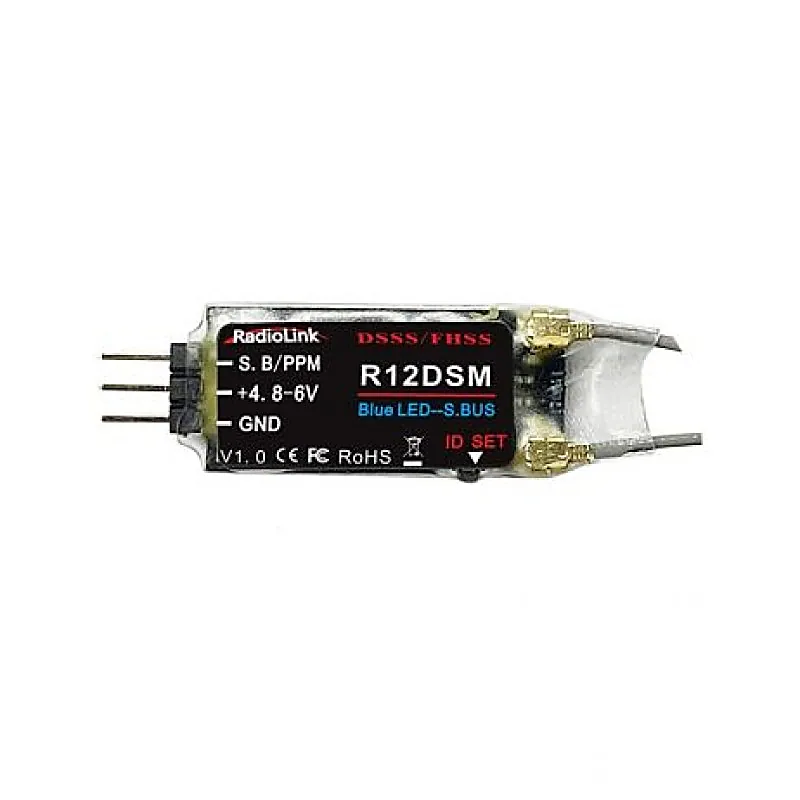

Radiolink R12DSM RC Receiver 2.4Ghz 12 Channels

The Radiolink R12DSM is a lightweight, high-precision 12-channel 2.4GHz RC receiver designed for use with Radiolink transmitters such as the AT9, AT9S, AT10, and AT10II. Utilizing a hybrid DSSS and FHSS dual spread spectrum system, it offers a strong, stable connection with a control range of up to 4,000 meters in ideal conditions. Weighing only 2.5 grams and featuring support for both SBUS and PPM signals, its an excellent choice for racing drones and other compact RC models. Users can easily switch between SBUS (blue/purple LED) and PPM (red LED) signal modes by pressing the ID SET button twice quickly. With 4096-level resolution and 0.5s signal precision, the R12DSM ensures responsive and accurate control with servo anti-shake capability. The receiver features detachable antennas, which should be installed at 90 degrees and away from conductive materials to maximize signal quality. Installation is simple, and the unit is built to withstand vibration and environmental challenges when properly wrapped and waterproofed. Compact, durable, and precise, the R12DSM delivers professional-grade performance in a tiny package. Features : 12 channels with SBUS/PPM signal support Dual-mode: SBUS (blue/purple LED) and PPM (red LED) Ultra-lightweight at just 2.5g Compact size: 30 x 15 mm Long control range up to 4,000 meters High precision: 4096 resolution, 0.5s step Detachable antennas with flexible installation Low power consumption (4.86V, 40180mA) Package Includes : 1 x Radiolink R12DSM RC Receiver .
