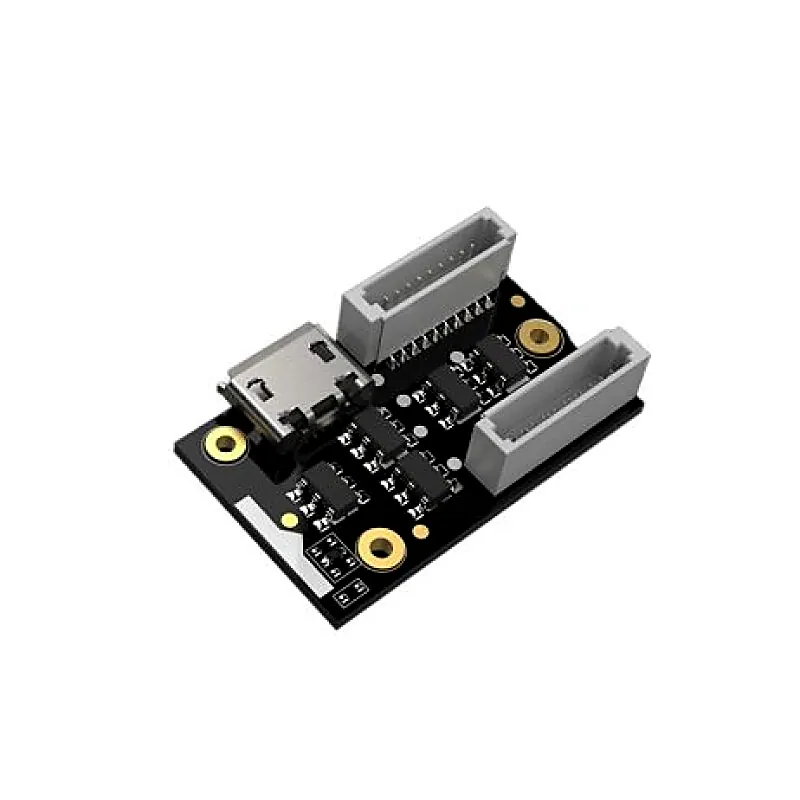

RakWireless IO Extension Module RAK5804

The RakWireless IO Extension Module RAK5804 RAKwireless is a compact and versatile add-on for the WisBlock system, designed to simplify the integration of external sensors, actuators, and user interfaces into custom IoT solutions. It expands the input/output capabilities of the WisBlock Core modulesuch as the RAK4631by providing a range of interfaces including digital GPIOs, an analog input, I2C and UART communication ports, LED outputs, a button input, and a USB interface. These connections are made accessible through two 10-pin expansion connectors (J2 and J3), allowing easy attachment of peripheral devices. The RAK5804 is ideal for low-power, battery-operated applications, featuring advanced protection mechanisms such as TVS circuits for ESD protection and PTC thermistors to prevent power overloads, developers can build reliable and customized IoT devices that communicate over LoRaWAN, LoRa point-to-point, or BLE with enhanced IO flexibility. Features : 4 Digital GPIOs, 1 Analog input 2 I2C ports, 1 UART port 2 LED outputs, 1 Button input USB interface to WisBlock Core Low power consumption Compact size: 25 15 mm TVS for ESD protection PTC thermistor for overcurrent protection Two 10-pin IO connectors Package Includes : 1 x RakWireless IO Extension Module RAK5804 1 x cable
