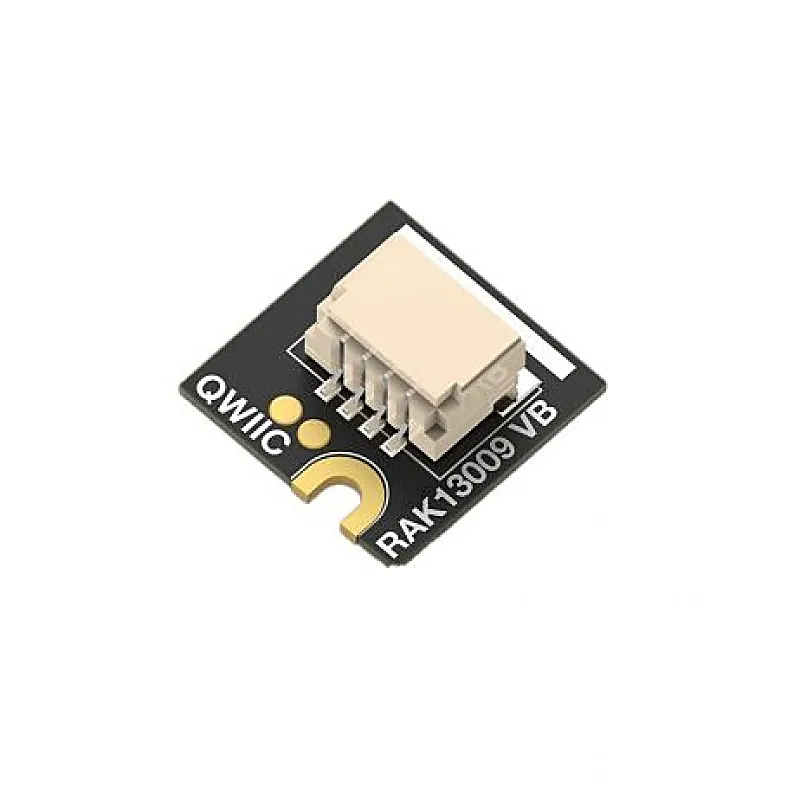

RakWireless QWIIC Module RAK13009

The RAK13009 is a compact QWIIC interface module from RAKWireless, designed to integrate seamlessly into the WisBlock system. Measuring just 10 mm x 10 mm, this module allows users to connect any standard QWIIC-compatible sensor or device directly to a WisBlock Base board, such as the RAK5005-O, using the I2C protocol. It features a standard WisBlock sensor connector that routes essential I2C lines (SDA, SCL), power (3.3V), ground (GND), and an optional interrupt (INT) pin to the QWIIC port. The module supports a maximum current of 226 mA through the QWIIC cable and follows the standard QWIIC wiring color scheme for plug-and-play functionality. Ideal for rapid IoT prototyping, the RAK13009 simplifies sensor integration, making it an efficient solution for applications in environmental monitoring, industrial automation, smart agriculture, and more. Features : QWIIC Interface: Plug-and-play connection for I2C sensors WisBlock Compatibility: Mounts easily on WisBlock Base boards (e.g., RAK5005-O) Power Supply: 3.3V powered through WisBlock baseboard I2C Support: Includes SDA, SCL, GND, and optional INT pin Current Support: Up to 226 mA through QWIIC cable Easy Integration: Standard QWIIC wiring and color code for seamless setup Package Includes : 1 x RakWireless QWIIC Module RAK13009 1 x Rectangular Cable
