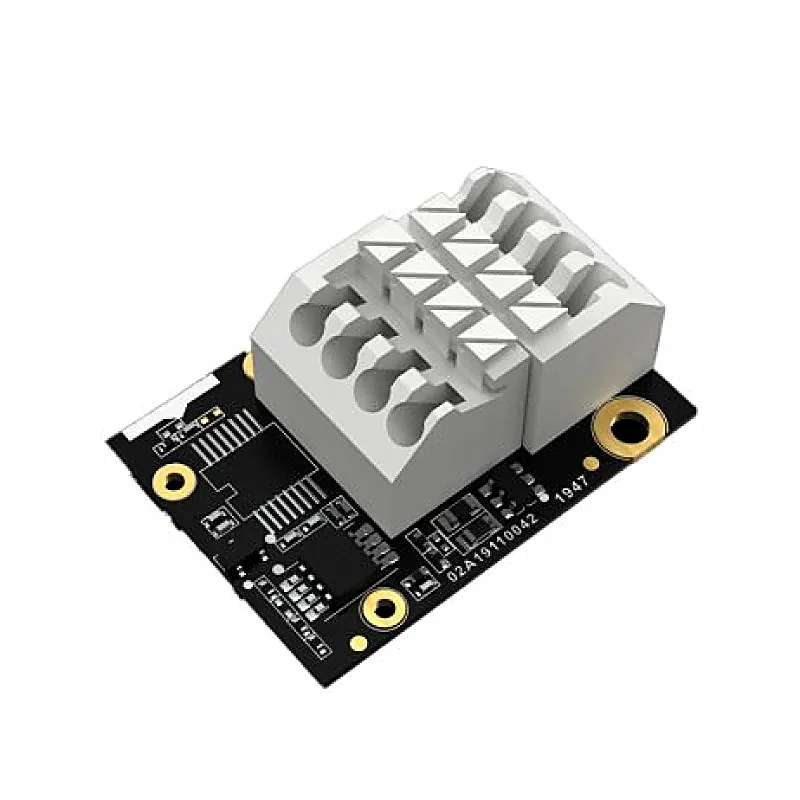

RakWireless RS485 Module 3PEAK TP8485E RAK5802

The RakWireless RS485 Module 3PEAK TP8485E RAK5802 WisBlock Interface Module is a compact, energy-efficient RS485 to UART converter designed for seamless IoT integration. It supports Modbus communication and connects directly with WisBlock Core modules like the RAK4631. Featuring automatic TX/RX detection, 18kV ESD protection, and support for up to 16 RS485 nodes, the RAK5802 also includes an I2C expansion port for sensor connectivity. Its ideal for industrial-grade, modular IoT applications. Features: RS485 interface with Modbus protocol support Automatic TX/RX detection (no DE signal needed) Compatible with multiple WisBlock Core modules Supports up to 16 RS485 slave devices Energy-efficient power-off mode via WisBlock Core In-field quick-connect terminals for easy installation 18kV HBM ESD protection (IEC61000-4-2 compliant) Onboard I2C interface for additional sensor integration Uses 3PEAK TP8485E transceiver chip Compact size: 35 mm x 25 mm Package Includes: 1 x RakWireless RS485 Module 3PEAK TP8485E RAK5802
