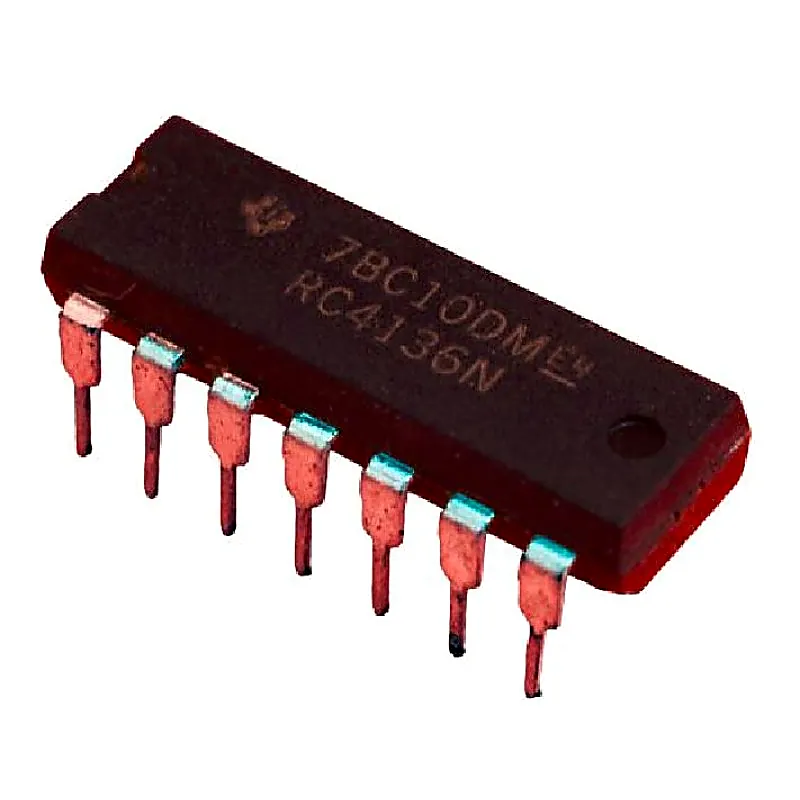

RC4136 Quad General-purpose Operational Amplifiers IC DIP-14 Package

RC4136 Quad General-purpose Operational Amplifiers IC DIP-14 Package The RC4136 is made up of four 741 type independent high gain operational amplifiers internally compensated and constructed on a single silicon chip using the planar epitaxial process. This amplifier meets or exceeds all specifications for 741 type amplifiers. Excellent channel separation allows the use of the RC4136 quad amplifier in all 741 operational amplifier applications providing the highest possible packaging density. The specially designed low noise input transistors allow the RC4136 to be used in low noise signal processing applications such as audio preamplifiers and signal conditioners Features:- Unity gain bandwidth – 3 MHz Short circuit protection No frequency compensation required No latch-up Large common mode and differential voltage ranges Low power consumption Parameter tracking over temperature range Gain and phase match between amplifiers Specifications:- Supply Voltage : ±18 V Input Voltage : ±30 V Output Short Circuit Duration : 30V Operating Temperature : 0°C to 70°C Storage Temperature : -65 to 150°C Junction Temperature : 125°C Lead Soldering Temperature (60 seconds) : 300°C Package Includes:- 1 x RC4136 Quad General-purpose Operational Amplifiers IC DIP-14 Package
