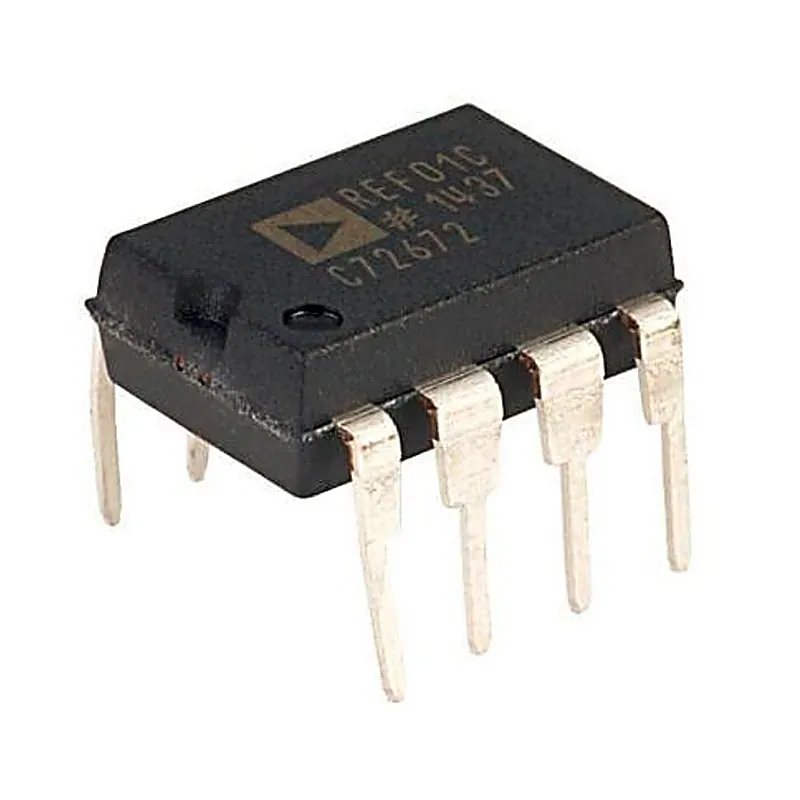

REF01 IC - 10V Precision Voltage Reference IC
REF01 IC - 10V Precision Voltage Reference IC
The REF01 is industry-standard precision voltage references. The stable 10V output of the REF01 can be adjusted over a ±6% range with minimal effect on temperature stability. The 10V REF01 has a single-supply operation over an input voltage range of 13V to 33V. The devices offer a low-current drain
+ 18% GST (added at checkout)
In stock — 783 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The REF01 is industry-standard precision voltage references. The stable 10V output of the REF01 can be adjusted over a ±6% range with minimal effect on temperature stability. The 10V REF01 has a single-supply operation over an input voltage range of 13V to 33V. The devices offer a low-current drain of 1mA. Features:- ♦ Pretrimmed to +5V, +10V ♦ Excellent Temperature Stability: 3ppm/°C (typ) ♦ Low Noise: 10µVP-P ♦ Short-Circuit Protected ♦ Linear Temperature Transducer Output Specification:- Parameter Specification Input Voltage 40V, 30V Continuous Power Dissipation: Plastic Dip 500mW Output Short-Circuit Duration Indefinite Storage Temperature Range -65°C to +150°C Operating Temperature Range 0°C to +70°C, -40°C to +85°C Lead Temperature 300°C Related Document:- REF01 IC Data Sheet
