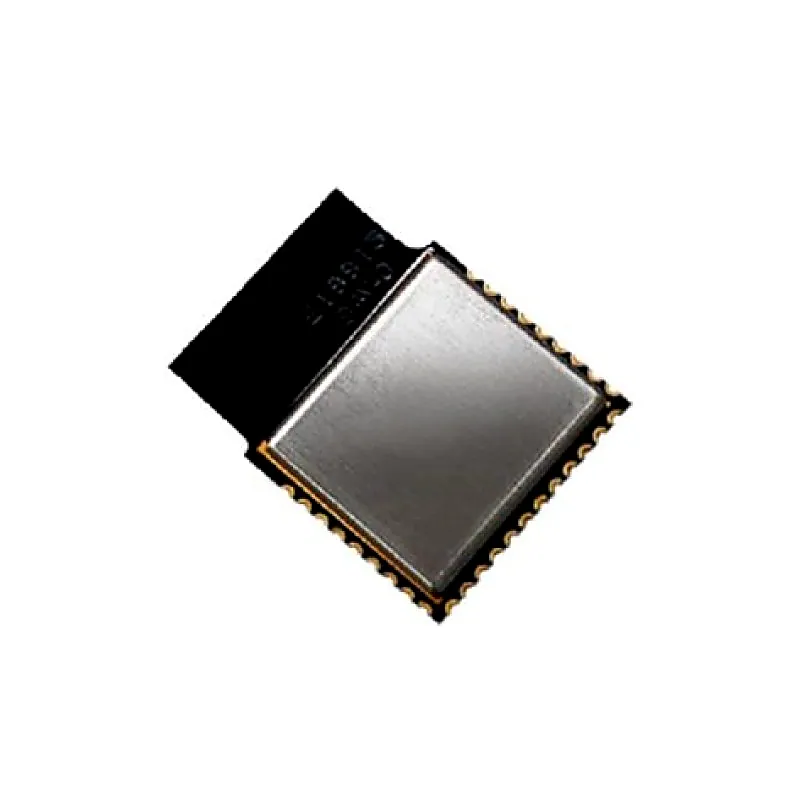

Reyax RYWB116 2.4GHz Ultra Low Power Wi-Fi / Bluetooth 5.0 Classic BR EDR 2.1 UART/SPI Interface Module with Integrated Antenna

Reyax RYWB116 2.4GHz Ultra Low Power Wi-Fi / Bluetooth 5.0 Classic BR EDR 2.1 UART/SPI Interface Module with Integrated Antenna

REYAX RYWB116 module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5. Note: To Know more details please refer to datasheet on attachment section. Features : Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5. Co-existence of mult

+ 18% GST (added at checkout)

In stock — 7 units ready

• Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5.
• Co-existence of multiple wireless protocols managed
• Ultra-low power consumption with multiple power modes
• Leading edge RF performance providing long range and higher throughputs.
• Transmit power up to +21dBm with integrated PA.
• Wi-Fi receiver sensitivity as low as -98.5 dBm.
• BT receive sensitivity as low as -95 dBm.
• Support: Client mode, Access point mode, enterprise security.
• Support for concurrent Wi-Fi, Bluetooth 5.
• 8.9 mA transmit current in BT 5 mode, 2 Mbps data rate.
• Operating temperature: -40C to +85C.
• Transmission distance up to 200M.
• Certification: FCC, NCC
• WLAN Operating Frequency: 2.412 to 2.484 GHz
• WLAN Bandwidth: 20/40 MHz
• Bluetooth Channel Spacing: 1 to 2 MHz
• BLE TX Active Current: 190mA
• BLE RX Active Current: 26.7 mA
