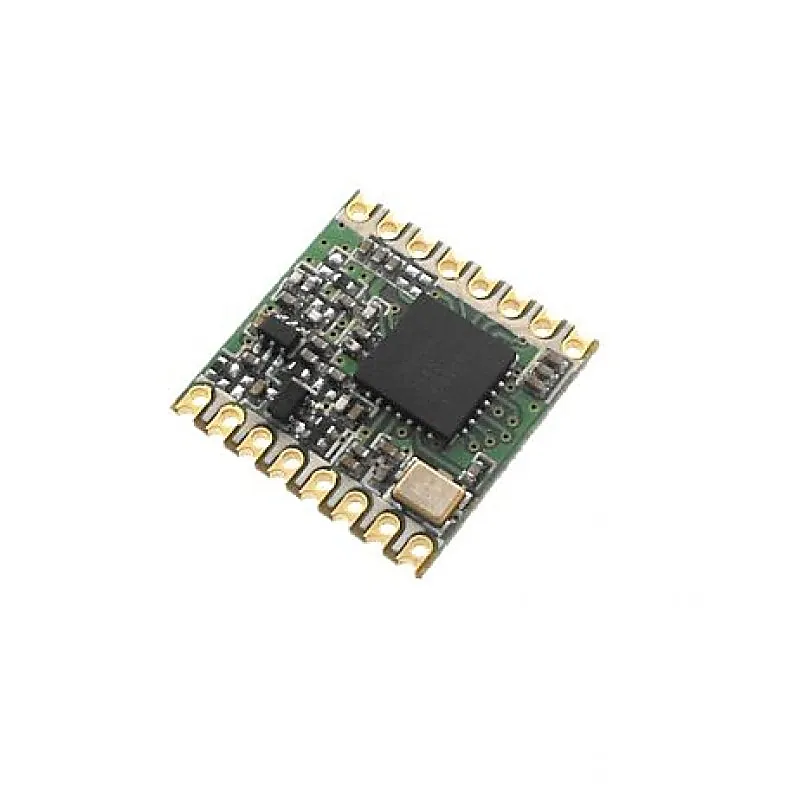

RFM98W 433mhz Wireless Receiving Module(Only 433mhz)

This is a RFM98W 433mhz Wireless Receiving Module(Only 433mhz). The RFM98W transceivers feature the LoRaTM long-range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Hope RFs patented LoRaTM modulation technique RFM98W can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields an industry-leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity, and energy consumption. Application: Automated Meter Reading. Home and Building Automation. Wireless Alarm and Security Systems. Industrial Monitoring and Control Long-range Irrigation Systems Features: LoRaTM Modem. 168 dB maximum link budget. +20 dBm 100 mW constant RF output vs. V supply. +14 dBm high-efficiency PA. Programmable bit rate up to 300 kbps. High sensitivity: down to -148 dBm. Bullet-proof front end: IIP3 = -12.5 dBm. Excellent blocking immunity. Low RX current of 10.3 mA, 200 nA register retention. Fully integrated synthesizer with a resolution of 61 Hz. FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation. Built-in bit synchronizer for clock recovery. Preamble detection. 127 dB Dynamic Range RSSI. Automatic RF Sense and CAD with ultra-fast AFC. Packet engine up to 256 bytes with CRC. Built-in temperature sensor and low battery indicator. Package Includes: 1 x RFM98W 433mhz WirelessReceiving Module(Only 433mhz) Attachments : Download
