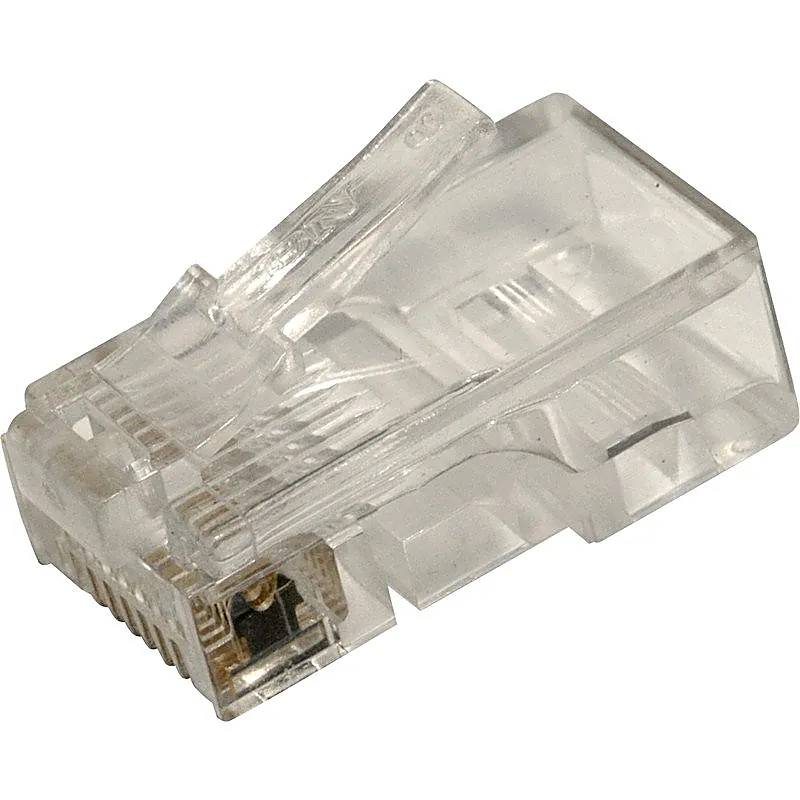

RJ45 (8P-8C) Male Plug - 5 Pieces Pack

This is an RJ45 (8P-8C) Male Plug. It finds its use in telecom, communications, and networking.Data connectors accept stranded cables from 26 24 AWG. It has an 8P-8C configuration i.e. it has 8 positions and 8 conductors. This plug has gold plated phosphor bronze contacts, which provides longevity. Also, the plug has a poly-carbonate body which provides a waterproof connection with the cable. The plug additionally has an IDC Contact termination. Features: Gold plated phosphor bronze contacts. Poly-carbonate body construction. IDC Contact termination. Straight orientation. Package Includes: 5 x RJ45 (8P-8C) Male Plug Specifications :- Connector Type RJ11/12 Gender Male Voltage(V) 30V AC / 42V DC Operating Current (A) 1.5 Body Material Poly-carbonate UL94V-0 Contact Material Phosphor Bronze Contact Resistance 20 m Contact Plating Gold flash Insulation Resistance (M) 1000 Length (mm) 22 Width (mm) 12 Height (mm) 13 Weight (gm) 1 (each)
