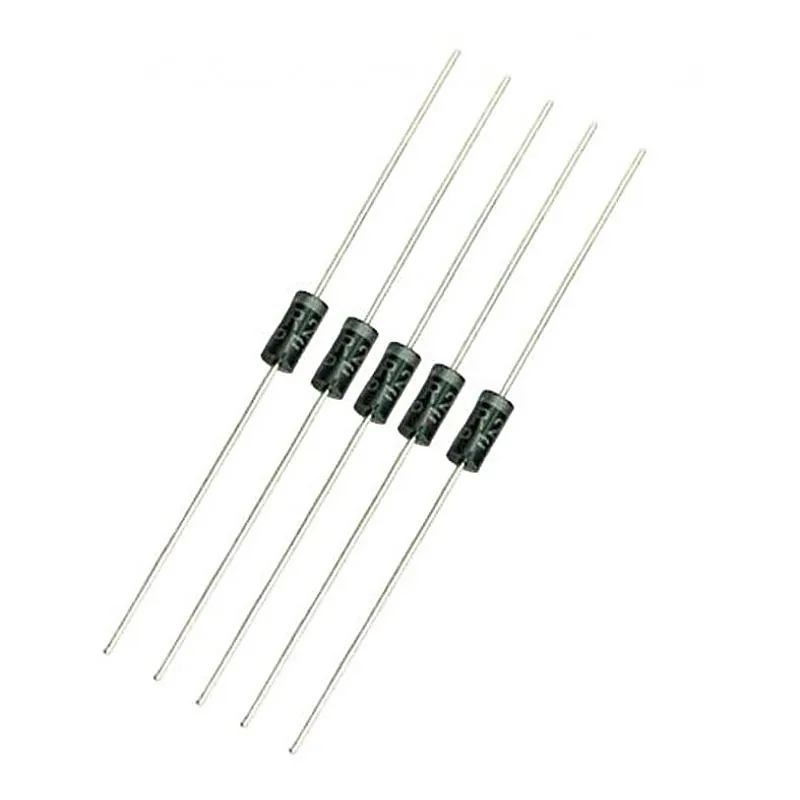

RL207 Diode - 5 Pieces Pack
RL207 Diode - 5 Pieces Pack
The RL207 is a Silicon Rectifier has a voltage range of 50 to 1000 Volts and Current of 2.0 Amperes. The following are the features of RL207: • Low Reverse Current • Low Forward Voltage Drop • High Current Capability • Plastic Material - U/L Flammability Classification 94V-0 Mechanical Characteristi
+ 18% GST (added at checkout)
In stock — 1760 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The RL207 is a Silicon Rectifier has a voltage range of 50 to 1000 Volts and Current of 2.0 Amperes. The following are the features of RL207: • Low Reverse Current • Low Forward Voltage Drop • High Current Capability • Plastic Material - U/L Flammability Classification 94V-0 Mechanical Characteristics:- • Case: DO-15, Molded Plastic • Leads: Solderable per MIL-STD-202, Method 208 • Polarity: Color Band Denotes Cathode • Approx Weight: 0.4 grams • Mounting Position: Any Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 1000 V VRWM Working Peak Reverse Voltage 700 V VR DC Blocking Voltage 1000 V IFSM Non-Repetitive Peak Forward Surge Current 70 A TJ Operating Junction Temperature Range − 65 to +150 °C Tstg Storage Temperature Range − 65 to +150 °C IF(AV) Maximum Average Forward Rectified Current 2 A CJ Typical Junction Capacitance 40 pF Related Document:- RL207 Diode Data Sheet
