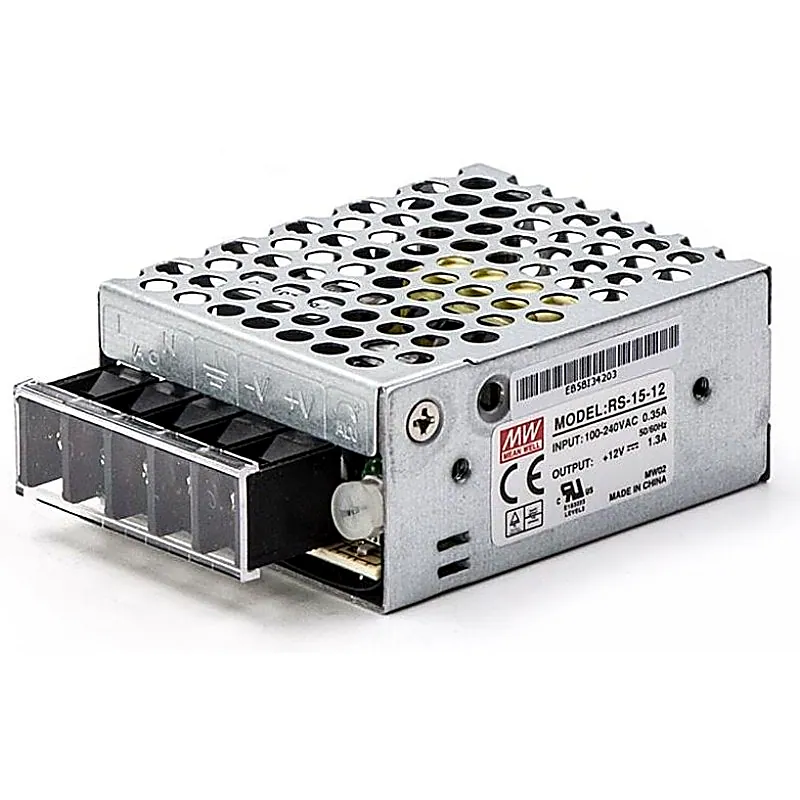

RS-15-12 Mean Well SMPS - 12V 1.3A - 15W Metal Power Supply

Key Specifications:- Output Voltage 12V Type Enclosed Type Approx. Wattage 15W Features Standard Series G3(Reliable) Mechanical Form Enclosed Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 100-240V auto-select Features:- No load power consumption <0.5W All using 105°C long life electrolytic capacitors Protections: Short circuit / Overload / Over voltage / Over Temp. Meet EMS EN50082-2/EN61000-6-2 heavy industry level (35~150W) Withstand 300VAC surge input for 5 sec. High operating temperature up to 70°C Withstand 5G vibration test Miniature size, high power density High efficiency, long life and high reliability LED indicator for power on 100% full load burn-in test Suitable for critical applications 3 years warranty Specifications:- AC input voltage range 85~264VAC, 120~370VDC AC inrush current Cold start, 65A at 230VAC DC adjustment range ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output Overload protection >105%, hiccup mode Over voltage protection 115%~135%, shut off Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute Working temperature -20~+70°C Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes Safety standards UL60950-1, TUV EN60950-1 approved EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) Connection Terminal block for input and output Dimension (LxWxH) 62.5x 51x 28 Case No. 971A Packing 108pcs /15.0kg Related Documents:- RS-15 Datasheet RS-15-12 Test Report CE Certificate (RS-15) UL Certificate (RS-15) CB Certificate (RS-15) TUV Certificate (RS-15) EMC Certificate(RS-15)
