RS232 to TTL Serial Interface Module - 4 Pin

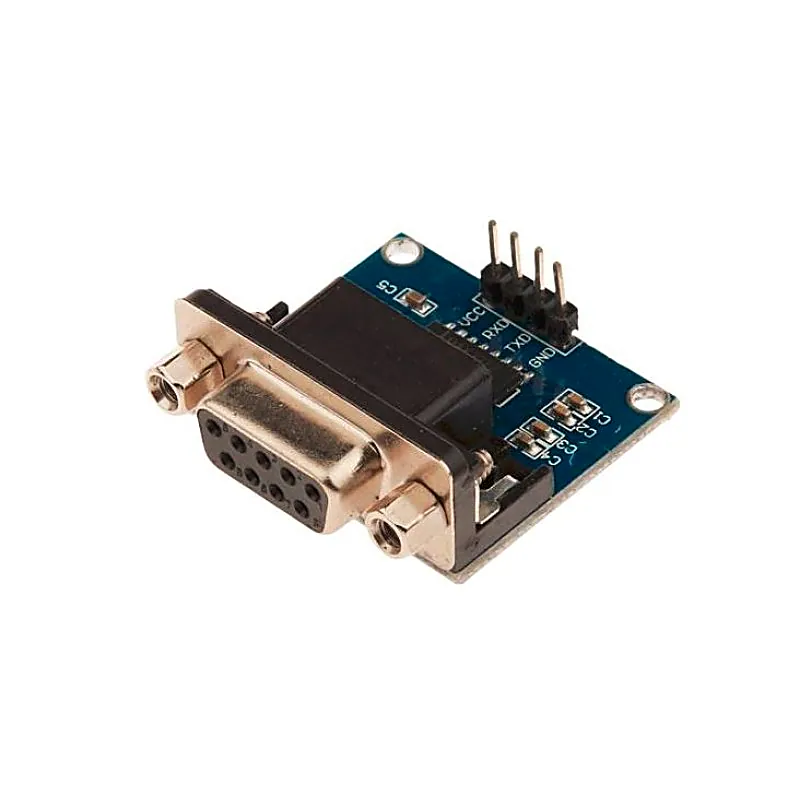

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion. These boards usually have a DB9 connector soldered at one end, and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer. The MAX3232CSE+ IC, which comes in a 16 pin narrow SO package. It requires between 3.0 V to 5.5 V to operate and has two receivers and two transmitters. It has a maximum guaranteed data rate of 120 kbps, and the circuitry requires four 0.1F charge-pump support capacitors. It is also compatible with the famous MAX3232 IC pins. These boards connect to systems with a UART hence, they work with ATMEL and PIC microcontrollers. MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL + Female Serial TTL + serial modules / Brush board. This module can be used to the serial port of microcontroller module expand DVD, router, hard drive and other equipment to upgrade. Features :- It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade. It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU Pre-assembled compact size board Suitable for use with most microcontrollers Operates up to 250 k bit/s Specifications :- IC Chip - MAX3232 Operating Voltage (VDC)- 3.3 ~ 5.5 Width (mm) - 32 Height (mm) - 15 Weight (gm) - 12 Package Includes :- 1 x RS232 to TTL Serial Interface Module - 4 Pin
