RS232 to TTL Serial Port Converter Adapter Communication Module

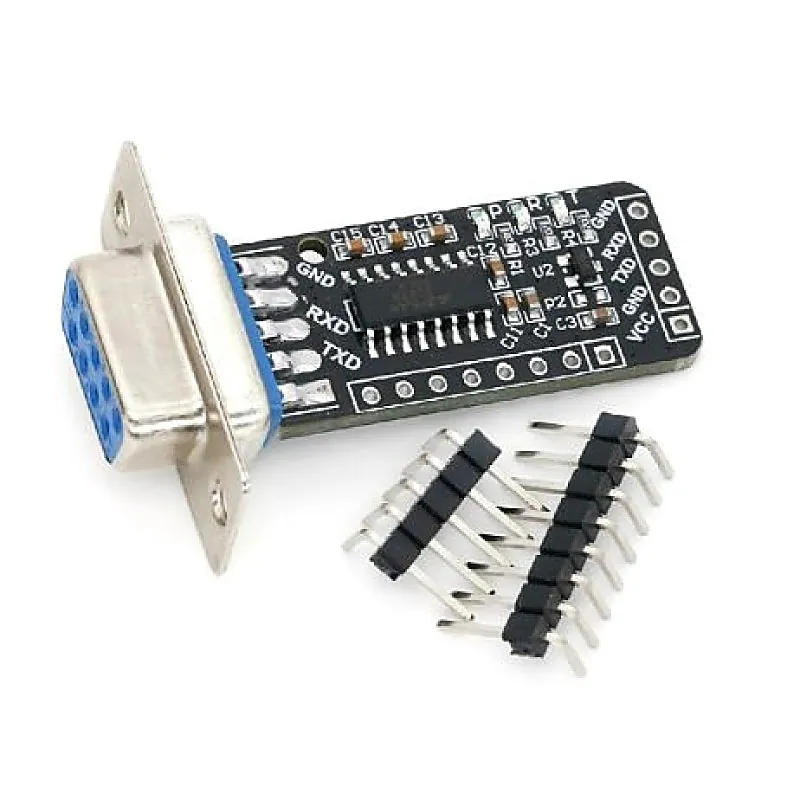

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion. These boards usually have a DB9 connector soldered at one end and four header pins with jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer. Note: The image may vary in terms of color. Features: It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, and hard disk repair set-top box upgrade. It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, and N+-2EC MCU. Pre-assembled compact-size board. Suitable for use with most microcontrollers. Operates up to 250 kbit/s. Specifications : RS232 to TTL Serial Port Operates up to 250 kbit/s. Total Product Length: 44.5mm Width: 31mm Height: 12mm Weight: 7.6g Package Includes: 1 x RS232 to TTL Serial Port Converter Adapter Communication Module
