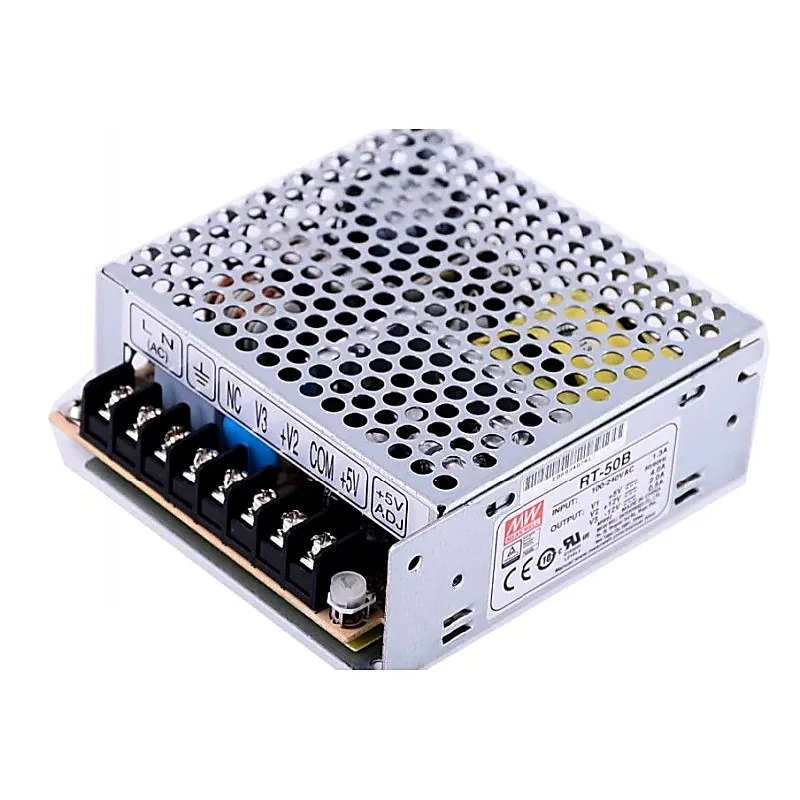

RT-50B Mean Well SMPS (5V 4A), (12V 2A) and (-12V 0.5A) - 50W Triple Output Metal Power Supply

Key Specifications:- Output Voltage-Channel 1 5 VDC Output Voltage-Channel 2 12 VDC Output Voltage-Channel 3 -12 VDC Output Current-Channel 1 4A Output Current-Channel 2 2A Output Current-Channel 3 0.5A Number of Outputs 3 Output Output Power 50 W Type Enclosed Type Triple Output Features Standard Series RT (Reliable) Mechanical Form Enclosed Warranty 3 Years Warranty IP Level Non-Waterproof Input Voltage 88 VAC to 264 VAC, 125 VDC to 373 VDC Features:- Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection LED indicator for power on 100% full load burn-in test All using 105°C long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70°C Withstand 5G vibration test High efficiency, long life and high reliability 3 years warranty Specifications:- Manufacturer: MEAN WELL Output Voltage-Channel 1: 5 VDC Output Voltage-Channel 2: 12 VDC Output Voltage-Channel 3: -12 VDC Number of Outputs: 3 Output Output Power: 50 W Open Frame/Enclosed: Enclosed Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC Input Current 0.8A/230VAC, 1.3A/115VAC Output Current-Channel 1: 4 A Output Current-Channel 2: 2 A Output Current-Channel 3: 0.5 A Operating Temperature: -25 TO +70 DEG CEL. Voltage Adjustable Range: 4.75 ~ 5.5V Frequency: 47 TO 63Hz Protection: Short circuit / Overload / Over voltage Industry: Commercial Mounting Style: Chassis Length: 99 mm Width: 97 mm Height: 36 mm Safety Standards: UL62368-1, TUV EN62368-1 approved Series: RT-50 Model: RT-50B Brand: MEAN WELL EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02 Unit Weight: 410 g Related Documents:- RT-50 Datasheet RT-50B Test Report CE Certificate (RT-50) UL Certificate (RT-50) CB Certificate (RT-50) TUV Certificate (RT-50) EMC Certificate(RT-50)
