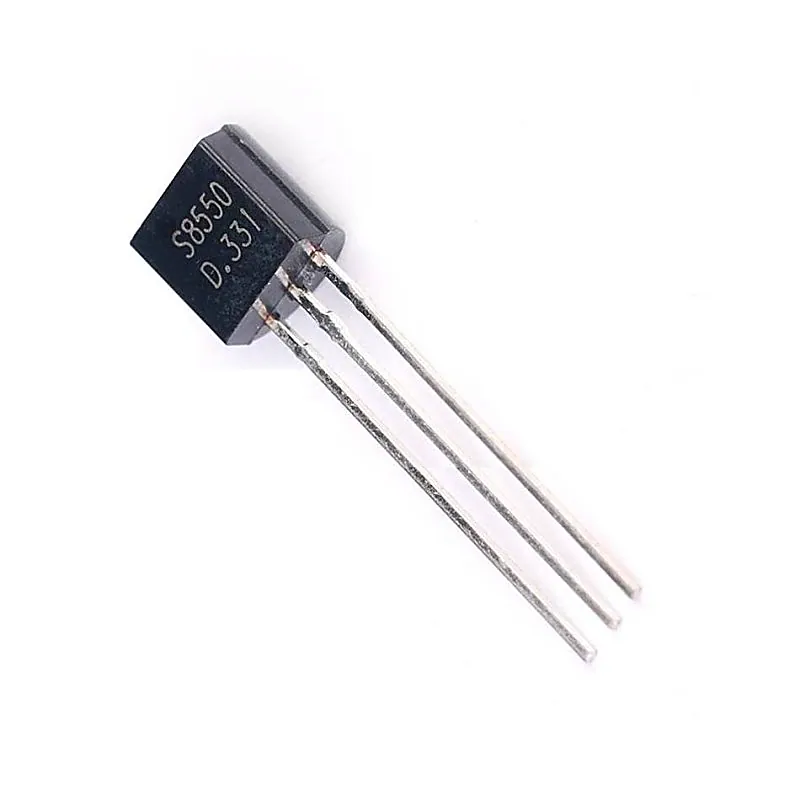

S8550 PNP General Purpose Transistor 20V 700mA TO-92 Package - 5 Piece Pack
S8550 PNP General Purpose Transistor 20V 700mA TO-92 Package - 5 Piece Pack
S8550 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Si
+ 18% GST (added at checkout)
In stock — 13641 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
S8550 is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity PNP Collector−Emitter Voltage (VCEO) 20V Collector−Base Voltage (VCBO) 30V Continuous Collector Current (Ic) 700mA Emitter Base Voltage (VEBO) 5V Operating Temperature Range -65 - 150°C DC Current Gain (hFE) 120-400 Current Gain Bandwidth (fT) 100MHz Output Capacitance (Cob) 9pF Related Documents:- S8550 Transistor Datasheet
