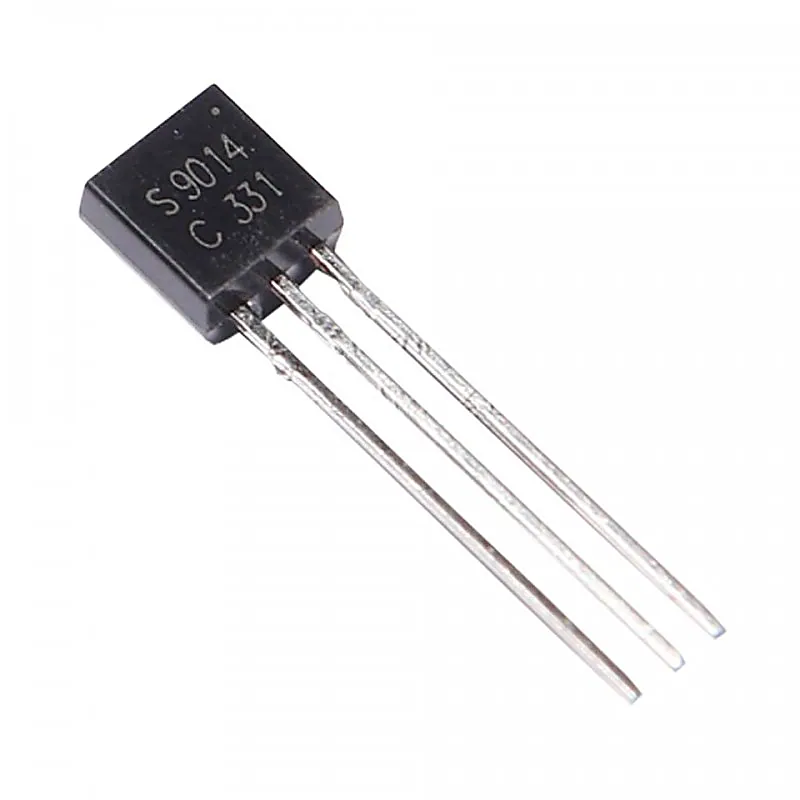

S9014 NPN General Purpose Transistor 45V 100mA TO-92 Package - 5 Piece Pack
S9014 NPN General Purpose Transistor 45V 100mA TO-92 Package - 5 Piece Pack
S9014 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Si
+ 18% GST (added at checkout)
In stock — 250 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
S9014 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. Features:- • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle Detailed Specifications:- Transistor Polarity NPN Collector−Emitter Voltage (VCEO) 45V Collector−Base Voltage (VCBO) 50V Continuous Collector Current (Ic) 0.5A Emitter Base Voltage (VEBO) 5V Operating Temperature Range -55 - 135°C DC Current Gain (hFE) 60-1000 Transition Frequency (fT) 150MHz Power Dissipation (Pd) 0.4W Related Documents:- S9014 Transistor Datasheet
